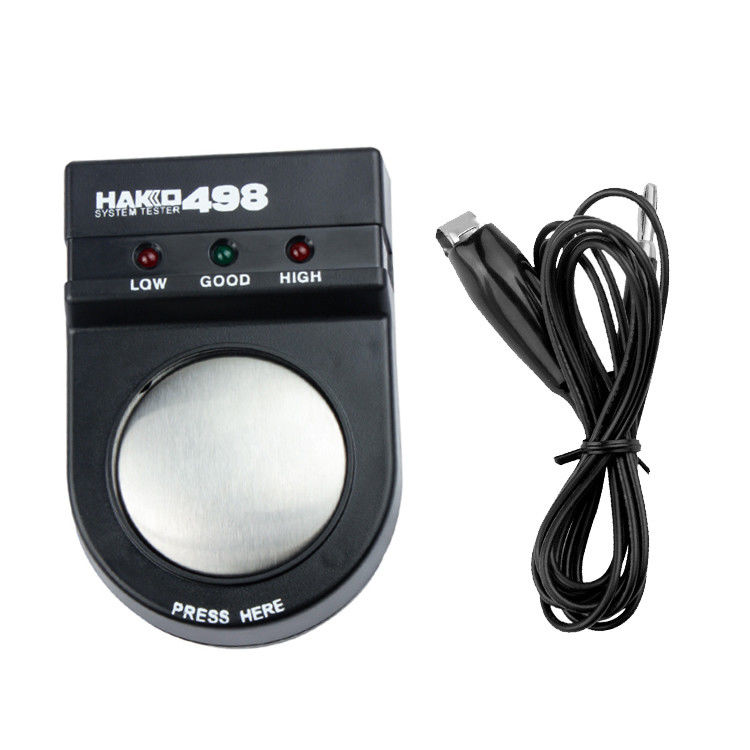

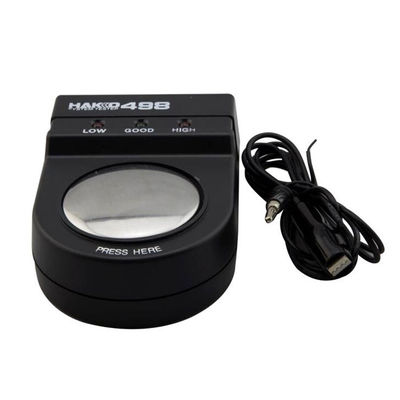

110*72*40mm Black 498 Safety Meter ESD Wrist Band Strap Tester For EPA Areas

110*72*40mm Black 498 Safety Meter ESD Wrist Band Strap Tester for EPA Areas

Usage method:

1. Insert the 9V dry battery into the battery slot on the back of the tester

2. Insert the banana plug into the grounding wire socket at the top of the 498 tester

3. Tighten the wrist strap tightly (anti-static wrist strap needs to be purchased separately)

4. Connect the grounding wire to the wrist strap

5. Press the tester with your hand, and the indicator light will light up and you will hear a sound

1. LOW red light on: low, resistance<800 kiloohms, need to check wrist strap and ground resistance, it has an impact on the human body.

2. G00D green light on: normal, 800 kiloohms ≤ R<9 megaohms, grounding system safety beep.

3. HIGH red light on: high, resistance>9 megohms. Check if the wrist strap is securely attached to the skin and check the resistance between the wrist strap and the ground wire to ensure that the ground wire is not broken.

External dimensions: 80W meters 40H1170

Weight: 0.46KG

Grounding wire: 1.2M

Features:

1, Ensure the personal safety of staff.
2, Eliminate the possibility of product damage due to static electricity.
3, Connect the grounding wire and press the plate with your hand. If the grounding system is safe, the green "GOOD" light will be
on and a buzzer will sound.
4, Safe, precise and durable

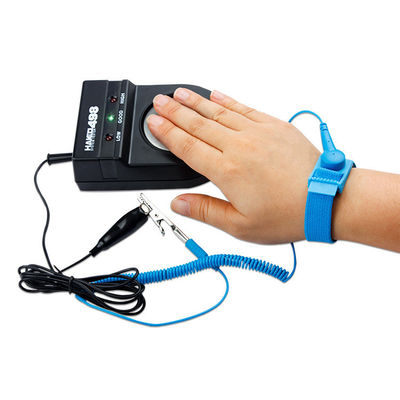

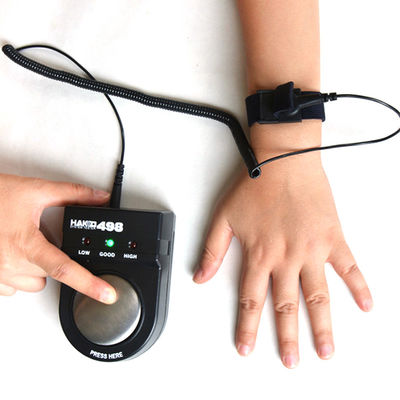

How to Use it?

Clamp the alligator clip of the tester to the grounding clip of the wristband to be tested (the cordless wristband needs to clamp
the top screw)
Press the middle test plate of the tester with the hand wearing wristband
If the grounding system is normal, the green "GOOD" light will light up, which indicating that the wristband can be used normally.
If the "HIGH" or "LOW" lights on both sides are on, it means that the wristband cannot be used normally.

More picture :

Other Products we Supply:

1. Cleanroom Apparels(Disposable, Launderable).
2. Cleanroom Documentation(Paper, Pen, Notebook).
3. Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove).
4. Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat).
5. ESD Package Materials(Bags, Tapes etc).
6. ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers).
7. Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs).
8. Cleanroom &ESD Chairs/Stools.
9. ESD Wrist/Heel Straps/Grounding Cords.
10. Static Control Ionizing Blower/Gun/Nozzle.
11. Illuminated Magnifier.
12. Cleanroom Curtain and etc.

About Us:

Established in 2011, Suzhou Quanjuda Purification Technology Co., LTD is a leading manufacturer and exporter of various ESD & Cleanroom products, offers a full line of ESD & Cleanroom equipment and supplies, providing comprehensive services by manufacturing, sourcing and exporting products from China.
