No.668, Fengting Avenue, Suzhou Industrial Park, Jiangsu Province, China | Sales01@allesd.com |
Place of Origin: | China |
Brand Name: | allesd |
Certification: | ISO/SGS |
Model Number: | AF0080 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1roll/knitting bags |
Delivery Time: | 15-25 working days |
Payment Terms: | T/T |
Supply Ability: | 1,500,000 meters per month |
Product Name: | ESD Antistatic 5mm Stripe Fabric | Material: | 99% Polyester+1% Carbon |
---|---|---|---|
Color: | Blue,black,white,green,yellow,pink,and Etc (All Colors Can Be Customized) | Fabric Style: | 5mm Stripe |
Width (cm): | 150 | Weight (gr/sqm): | 110GSM |
Yarn Count: | 100D*100D | Weave Style: | 1/2 Twill |
Surface Resistivity: | 10e6 ~ 10e9ohms | Functions: | Anti-Static, Shrink-Resistant, Tear-Resistant |
Recommended Class Of Cleanroom: | Class 100~10000 | Package: | 1roll/knitting Bags |
Highlight: | 110GSM Anti Static Fabric,Anti Static ESD Clothing Material,Polyester Carbon ESD Clothing Material |
High Quality Polyester Carbon Anti Static ESD Fabric Clothing Fabric
Antistatic Fabric Description:
ESD Anti-static fabric is ideal for clean room environment,
ESD fabric can protect people from and potential risks to be exposed in dangerous and harmful chemicals and will also provide you with particle and ESD safe working circumstances at the same time.
Anti-static ESD Fabric | |
Material: | 99%Polyester+1%Carbon Fiber |
Color: | White/yellow/blue/red/green etc.Customizable colors |
Use: | ESD protection in clean rooms, work wear |
Carbon Configuration: | 5mm Stripe |
Weight (gr/sqm): | 110GSM |
Surface Resistivity (ohm/unit): | 10e8 ~ 10e9 |
Functions | Anti-Static, Shrink-Resistant, Tear-Resistant |
Friction charges (V): | <200 |
Number of yarns (denier) | Warp100 Weft100 |
Weave style: | 1/2 Twill |
Air permeability (cc/cm²/sec): | 30 |
Recommended Class Of Cleanroom: | Class 1000~10000 |
Anti-static Clothing Fabric Use:
The special polyester filament yarn and high performance permanent conductive fiber are woven by special process.It is used for making dust proof clothing,anti-static clothing and so on,and it is applied in medical,pharmaceutical,food,precision instrument,aerospace and other industries which are sensitive to static electricity and have high requirements on cleanliness.
Cleanroom ESD Fabric Features:
ESD fabric clothing made by special sewing process has excellent anti-static and dust proof performance,with high efficiency,permanent anti-static,dust-proof performance and soft,thin slippery,weaving clear characteristics.
Recommended cleaning process for ESD garments:
The carbon filament nylon used in our garments is sensitive to heat, alkali, acids, softeners and bleach. In order to keep the ESD properties of the garments, please follow our recommended instructions:
*Wash in warm water, no more than 40 C(104 F) with liquid laundry detergent, i. e. liquid Tide, lemon liquid detergent, oxydol, and etc.
*In case of severe dirt or grease, stronger liquid detergents can be used if they do not contain any chlorine bleach.
*Do not bleach, do not use alkali, acid or fabric softeners. Do not dry clean.
*Usually no ironing will be needed, as a special additive is used during the finishing process of our woven fabrics. Nevertheless, the garments can be ironed at medium temperature.

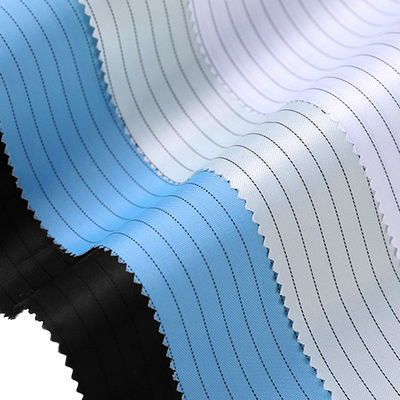

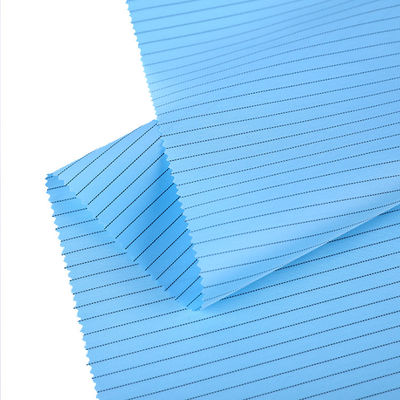

More picture about ESD Fabric:
Other Products we Supply:
* Cleanroom Apparels(Disposable, Launderable)
* Cleanroom Documentation(Paper, Pen, Notebook),
* Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
* Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
* ESD Package Materials(Bags, Tapes etc),
* ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
* Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
* Cleanroom &ESD Chairs/Stools,
* ESD Wrist/Heel Straps/Grounding Cords.
* Static Control Ionizing Blower/Gun/Nozzle,
* Illuminated Magnifier,
* Cleanroom Curtain and etc
