10mm*10mm*2.0mm ESD SMT Stacked Anti Static Plastic IC Storage Tray For PCB

10mm*10mm*2.0mm ESD SMT Stacked Anti-Static Plastic IC Storage Tray For PCB

Description:

An IC chip ESD anti-static tray is a specialized tray designed to safely store and transport integrated circuit (IC) chips while providing electrostatic discharge (ESD) protection. It is commonly used in electronic manufacturing and handling processes to prevent damage to sensitive electronic components.

Features:

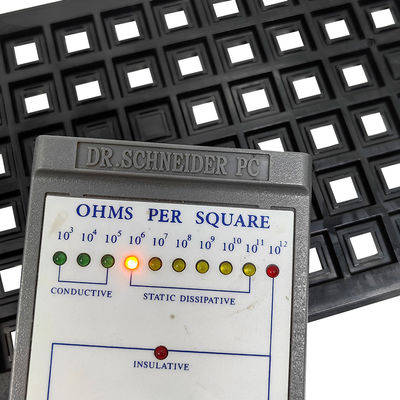

1.ESD Protection: The IC chip ESD anti-static tray is constructed from a material that possesses inherent antistatic properties. It is designed to dissipate static electricity and prevent electrostatic charges from accumulating on the tray's surface, thus safeguarding the IC chips from ESD damage.

2.Tray Design: The tray features multiple compartments or cavities specifically designed to securely hold and organize individual IC chips. The compartments are often molded to fit the size and shape of the chips, providing a snug fit and preventing movement during transport.

Conductive Material: The tray is typically made from a conductive material, such as conductive plastic or carbon-filled polypropylene. This material helps to dissipate any static charges that may come in contact with the tray, providing an additional layer of protection for the IC chips.

3.ESD Symbol and Markings: The IC chip ESD anti-static tray often displays the ESD symbol, which consists of a triangle surrounding a reaching hand, indicating that the tray provides ESD protection. It may also include additional markings, such as ESD warning labels or instructions, to promote proper handling and usage.

4.Stackable and Durable: The tray is designed to be stackable, allowing for efficient storage and transportation of multiple trays. It is built to withstand regular use and is resistant to impact, chemicals, and temperature variations, ensuring the long-term protection of the IC chips.

5.Compatibility: The IC chip ESD anti-static tray is compatible with various IC chip sizes and formats, including DIP (Dual Inline Package), SOP (Small Outline Package), QFP (Quad Flat Package), and others. It provides flexibility in accommodating different types of IC chips.

6.Compliance with ESD Standards: The tray is manufactured in accordance with industry standards for ESD protection, such as ANSI/ESD S20.20 or IEC 61340. It ensures that the tray meets specific requirements for ESD control and protection in electronic manufacturing environments.

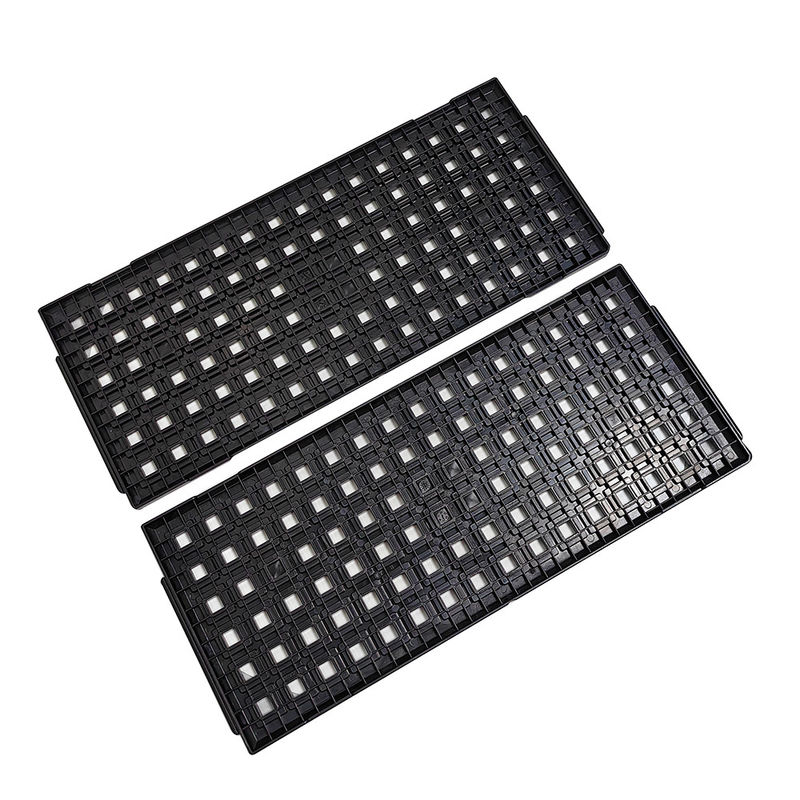

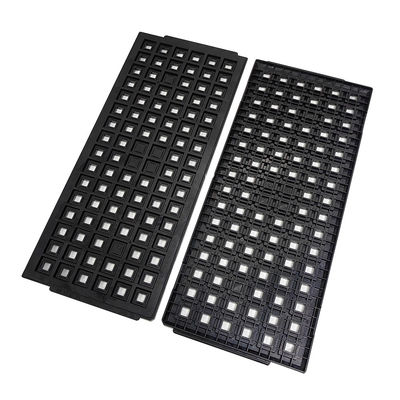

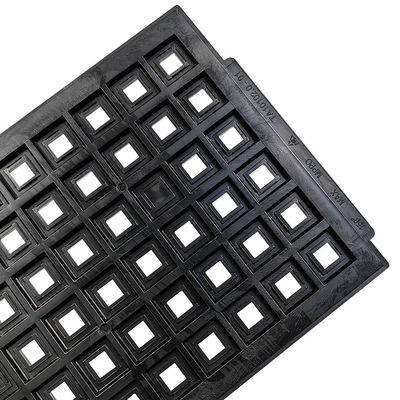

More Picture:
