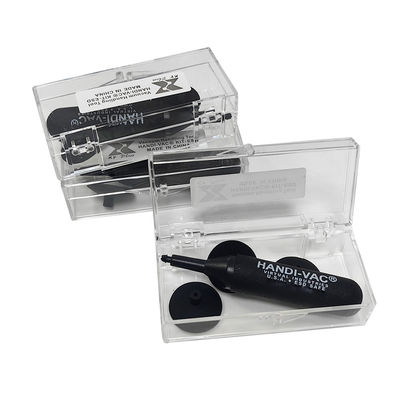

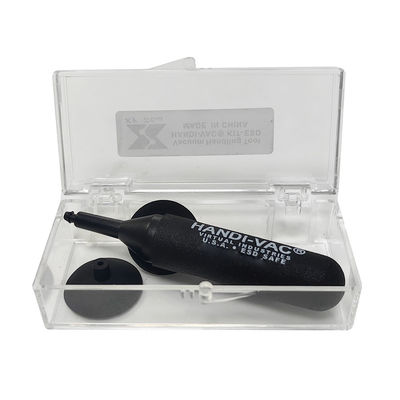

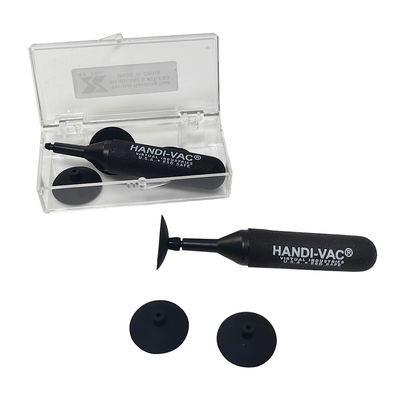

ESD SMT IC Vacuum Pen With 3 Suction Cups For Safe And Accurate Component Handling

ESD SMT IC Vacuum Pen With 3 Suction Cups For Safe And Accurate Component Handling
ESD SMT IC Vacuum Pen With 3 Suction Cups For Safe And Accurate Component Handling

Large Image :  ESD SMT IC Vacuum Pen With 3 Suction Cups For Safe And Accurate Component Handling

Product Details:
Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS
Model Number: HVIC-002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1set/Box
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 5,000pcs per month
Detailed Product Description
Product Name: ESD SMT IC Vacuum Pen With 3 Suction Headers Model Number: HVIC-002
Material: Antistatic Rubber Finish Color: Black
Pen Suction Body Diameter: 72mm Sucker Body Diameter: 20mm
Type: Set Suction Pen Feature: Anti-slip,Anti-static,Mini
Function: IC SMD Pick Up,Absorb Electronic Parts And Small Products Packing: 1 Set/box
High Light:

Vacuum IC Suction Pen

,

ESD SMT IC Vacuum Pen

,

3 Suction Cups IC Vacuum Pen

ESD SMT IC Vacuum Pen with 3 Suction Cups for Safe and Accurate Component Handling



Description:



The ESD SMT IC Vacuum Pen is a specialized tool used for handling sensitive electronic components, specifically surface mount integrated circuits (ICs). It is designed to prevent electrostatic discharge, which can potentially damage ICs.



The vacuum pen operates by creating suction, allowing for the secure and precise handling of ICs during assembly or rework tasks. It helps in the accurate placement of ICs onto circuit boards without risking any harm to the delicate pins or leads. The suction force of the pen is adjustable to accommodate different IC sizes and weights.



The ESD SMT IC Vacuum Pen typically comes with multiple suction headers, which are interchangeable attachments. These headers feature various sizes and shapes of suction cups to cater to different IC packages, including diverse pin configurations and sizes.



By utilizing the ESD SMT IC Vacuum Pen, technicians and engineers can enhance efficiency and accuracy in the handling of ICs, minimizing the potential for damage and improving overall production quality in electronics manufacturing or repair processes.



Material: Antistatic silica gel
Color: Black
Size: Pen suction body diameter: 72mm
Sucker body diameter: 20mm
Type: Type Set suction pen
Feature: Anti-slip,Anti-static,Mini
Function: IC SMD Pick Up,Absorb electronic parts and small products
Function: Antistatic
Packing: 1 Set(including one suction pen and four suction nozzles of different specifications)/box
Used: semiconductors, microelectronics, LED, screen printing, photovoltaics, etc



The ESD SMT IC Vacuum Pen offers several features that make it a reliable and efficient tool for handling sensitive electronic components:



1. Good wear-resistant feel: Made of imported high tear resistant silicone, the soft pen body is more convenient and durable to use;
2.HV anti-static vacuum suction pen: easy to operate, convenient, flexible, strong adsorption force, not easy to fall off;
3.Quality assurance: Genuine quality assurance, no intermediate links directly shipped from the manufacturer;
4.Fine workmanship for you to choose from: anti-static and anti-skid materials, silicone pen body, meeting anti-static specifications, anti-static standard value: 10e6-8 ohms;
5.IC anti-static vacuum suction pen: powerful version: 2MM3MM5MM7MM10MM12MM16M20MM



More Picture:

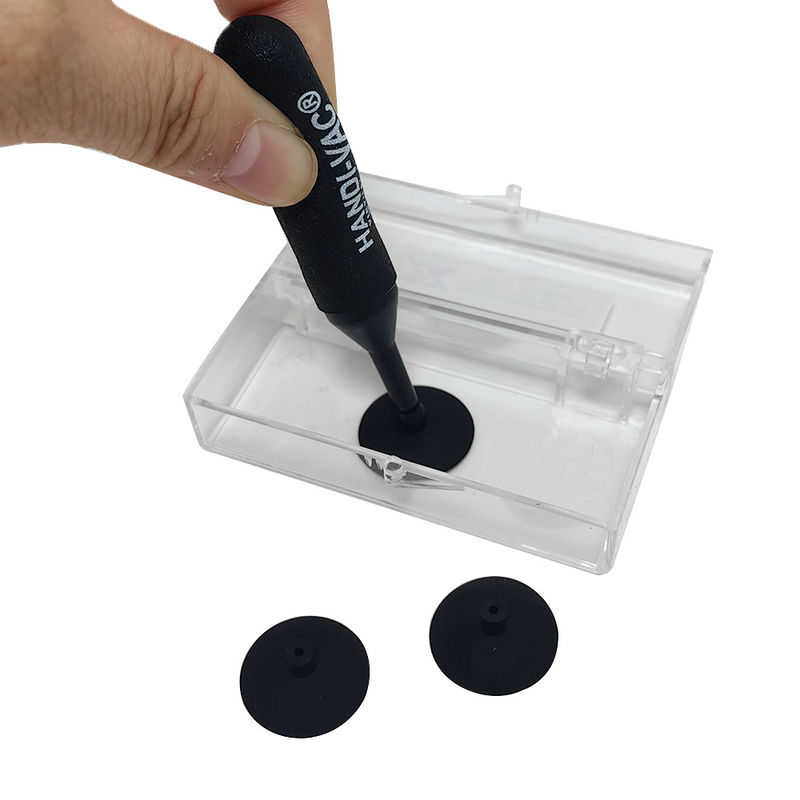

ESD SMT IC Vacuum Pen With 3 Suction Cups For Safe And Accurate Component Handling 0
