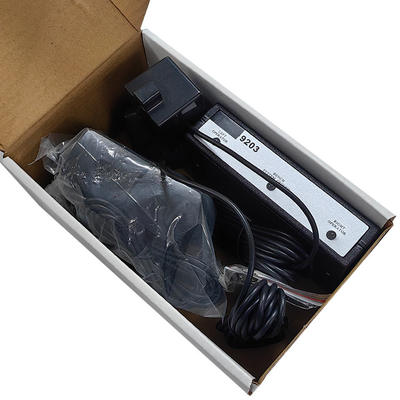

Simultaneous Monitoring ESD Anti Static Wrist Strap One Drag Two Monitors

Simultaneous Monitoring Workbench Mats ESD Anti-static Wrist Strap One Drag Two Monitors

Product function introduction:

Product Features of Desk Pad Wrist Strap Online Monitor Monitor the real-time on-off situation of the anti-static table mat to the ground.
The on-off status of the static ring to the ground is constantly reflected, and under the double-ground guarantee, the integrity of the discharge path of the static electricity to the ground is more ensured.
The monitor has a fool-proof function, the red light will be on for alarm when it is powered on, and the green light will turn green when the wristband is inserted.
When the wristband is inserted into the monitor and is not worn normally, it will alarm. When the wristband is disconnected or in bad contact, the instrument will alarm.
Simultaneously monitor the single-wire wrist strap of two stations and monitor the grounding of 1 bench pad
The measurement accuracy of the instrument is +/-10%.
Fits any wristband with a banana tip single circuit.
Beautiful appearance, strong anti-interference ability.

Features:

1.No checking is required Instant warning of wrist strap failure , improve production quality;
2.Highly reliable , easy andconvenient;
3.Small and handy , easy and convenient;
4.Low price , save cost;
5.For your convenience , youcan use any wrist strap with banana plug in the market

How to Use:

1.Open the packing box and find the matching screws to install the main unit of the instrument in a suitable place on the workbench.
2.The ground wire of the production line is guaranteed to be in good condition. Connect the two wrist strap sockets to the main unit, and the table pad to the main unit.
3.Plug the power adapter output into the instrument.
4.Power on the 220 volt AC adapter, the red LED light will light up, and the alarm will sound for 2-4 seconds.
5.The monitor LED will turn green when the wrist strap is inserted.
6.When people wear it incorrectly, the monitoring LED will turn red, and the alarm will sound at the same time.
7.If the connection to the pad is interrupted artificially or accidentally, the pad monitoring LED will turn red and the alarm will sound.
8.After the function test is correct, the instrument can be officially used.
