Place of Origin: | China |
Brand Name: | allesd |
Certification: | ISO/CE |
Model Number: | Interlock |
Minimum Order Quantity: | 1 pcs / Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1pair/bag, 50pair/ctn, export pallet (economic knitting bag package also available) |
Delivery Time: | 10-15 work days |
Payment Terms: | T/T |
Supply Ability: | ~50,000pairs per month |
Product Name: | Doors Interlock System | Material: | Industrial Iron Box |
---|---|---|---|
Data Storage Option: | Cloud, Memory Card | Network: | TCP, Ip |
Color: | Black | Size: | 35cm*30cm*10cm |
Feature: | With Keypad And Card Reader For Access Control Operation | Application: | Suitable For Home, Office And Other Access Control Application |
Control Door: | The Maximum Support Any Logic Interlock Within Eight Door | Package: | Carton Packaging |
Highlight: | Cleanroom Interlock Access Control System,ISO Interlock Access Control System,ISO Door Interlock System |
TCP/IP Network Based Door Access Control System Support Card Reader Face Recognition Access Control System
Doors Interlock System parameter:
TCP/IP Network Based Door Access Control System |
|
Support | Card Reader Face Recognition Access Control System |

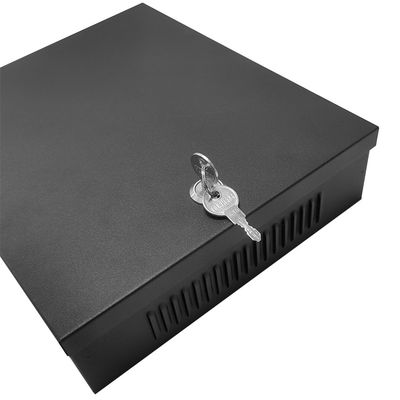

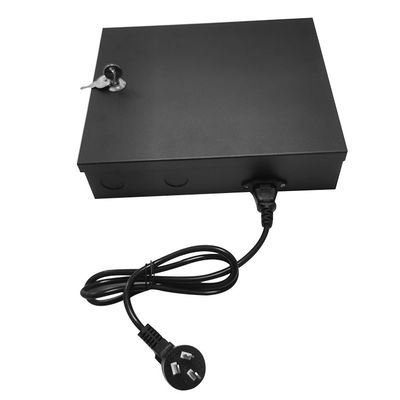

Material | industrial iron box |
Color | black |
Size | 35cm*30cm*10cm |
Control door | The maximum support any logic interlock within eight door |
Feature | Control door/safe |
Application | cleanroom |
Doors Interlock System introduce:
Intelligent two-door access controller is our new product, which is specially suitable for bank interlock access control system.
The controller is provided with strong network function, absolutely suitable for high degree intelligent residential district, bank, intelligent building, prison, government, business office, military telecommunication management, field unmanned base-station management. All the parameters of the device absolute set by computer software, convenient operation and management.
cleanroom interlock system Advantage :
1, Normally open or normally closed mode can be adjusted via number
2, After buffering or sterilization time can be adjusted through the button on the controller to save
3, The front light support countdown display
3, System functions self-test mode, great stability
4, Networking view door status, and support for remote control
5, Installation is simple, easy, normal installation worker to install
Open System:
Normally open interlock workflow:
1, When the door is not open, system standby, door status lights are green. This time without the key, the door can be pushed arbitrarily enter. Reduce exposure to pollution, easy access with the matter;
2, Pushed open a door, the other door interlock relationship immediately locked, while the light turns red, indicating that the door can not enter;
3, After the door is closed again, the system enters the disabled (buffer) time, all the door locks are closed, the door is back in standby mode after the specified disable time. Buffer time can be adjusted in 0---65535 seconds;
4. In the disabled (buffer) time, such as to open the door, press the emergency button to lock the system after the reset, enter the standby state. The lock is not powered, and the overall service life is extended.
Close System:
Normally close interlock workflow:
1, When the door is not open, system standby, door status lights are green.It permits the key to open the door under the green state. After opening the other door by default logic control;
2, Pushed open a door, the other door interlocking relationship indicator turns red, indicating that the door can not enter, key invalid;
3, After the door is closed again, the system enters the disabled (buffer) time, all the door locks are closed, the door is back in standby mode after the specified disable time. Buffer
time can be adjusted in 0---65535 seconds;
4, Within disable (buffer) time as you want to open the door, press the emergency button system reset, enters the standby state.
More picture:
One set door interlock system include:

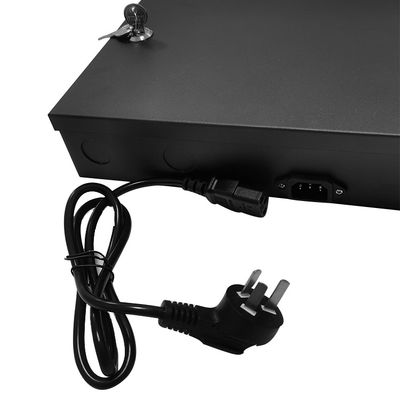

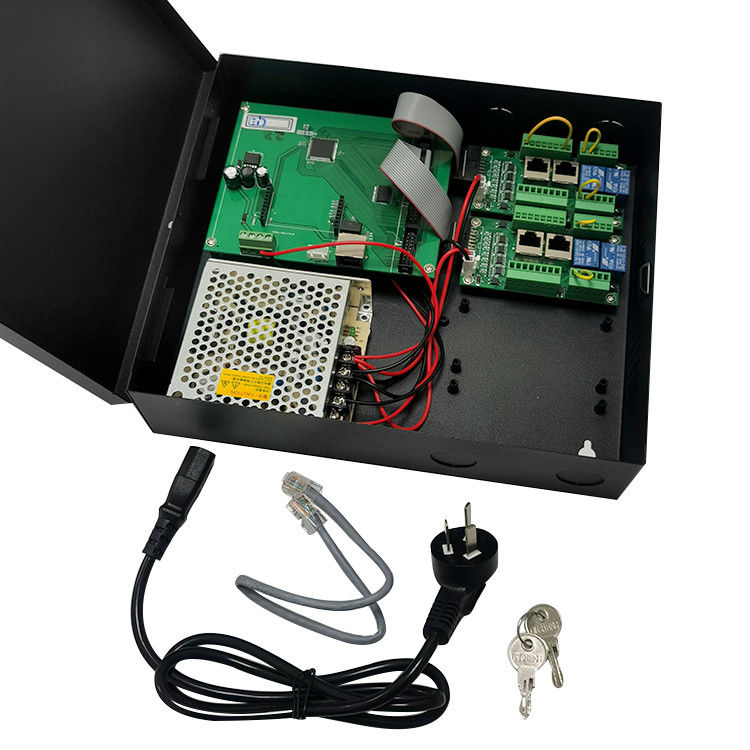

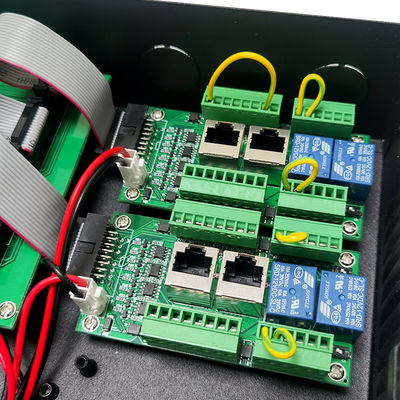

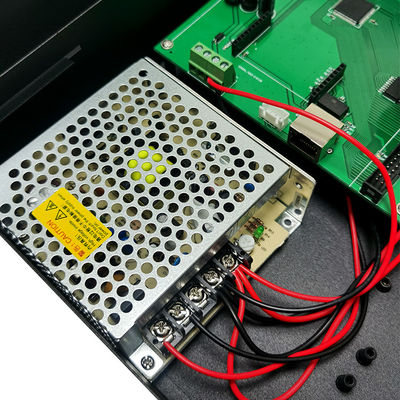

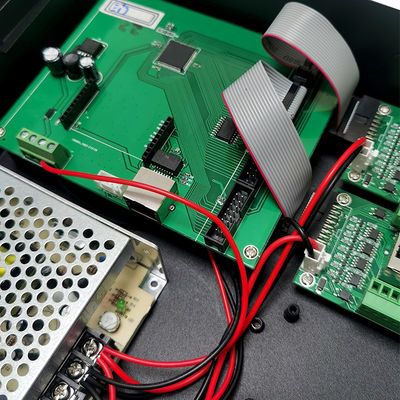

(1), Controller & Power supply
(2), Electric Lock:
(3), Door Magnetic
(4), Door touch switch/indicator
Interlock system for 2 doors.
(Include 1pcs controller + 2pcs Electric Lock + 2pcs Door Magnetic + 4pcs Touch LED switch ).
Interlock system for 3 doors.
(Include 1pcs controller + 3pcs Electric Lock + 3pcs Door Magnetic + 6pcs Touch LED switch ).
