Anti Static Tweezers Flat ESD Cleaning Brush w/Conductive Handle And Fibers
Basic Properties
Place of Origin:
China
Brand Name:
allesd
Certification:
ISO/SGS
Model Number:
ET-0105
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
100,000pc per month
Product Summary
Anti Static Tweezers Flat ESD Cleaning Brush w/ Conductive Handle And Fibers Description: 1, ESD brushes are needed in electronics manufacturing, they help to clean the PCB’s (remove dirt, flux residues etc.), and discharge static electricity through properly ESD grounded operator. 2, Conductive ...
Product Details
Highlight:
electrostatic discharge tools
,anti static tools
Handle Material:
Conductive Plastic Handle
Bristle Material:
Synthetics Fibers
Design:
Flat Brush
Surface Resistance:
106-108ohms
ESD Safe:
Yes
Size:
Many Sizes
Product Description

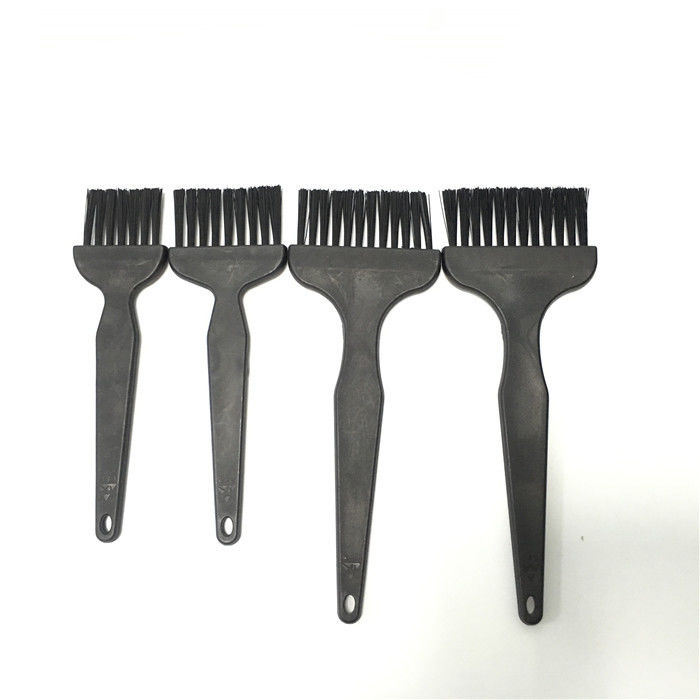

Anti Static Tweezers Flat ESD Cleaning Brush w/ Conductive Handle And Fibers
Description:
1, ESD brushes are needed in electronics manufacturing, they help to clean the PCB’s (remove dirt, flux residues etc.), and discharge static electricity through properly ESD grounded operator.
2, Conductive brushes minimize static charge generation during cleaning.
3, Black static dissipative polypropylene handles are able to pass the charges to the ground.
4, Conductive fibers resistanc: 103 - 104 Ω, Dissipative handle resistance: 105 - 108 Ω
5, There're neutral brushes, harder brushes and soft brushes:
Harder brushes are used mainly for electronics in manufacturing and service of the circuit boards.
Soft brushes are used for cleaning optics, micro-circuits etc.
Specifications:
| Picture | Part Number | Rows and Bristles | Description | Total length (mm) | Bristle Width (mm) | Bristle Height (mm) |
|
SS-01 |
1 row 2 bristles bundles |
ESD Flat Brush / X-Thick / Small | 143 | 15 | 15mm |
| |
SS-02 |
1 row 3 bristles bundles |
ESD Flat Brush / X-Thick / Medium | 150 | 23 | 15mm |
| |
SS-03 |
1 row 6 bristles bundles |
ESD Flat Brush / X-Thick / Large | 160 | 44 | 25mm |
|
S-01 |
1 row 3 bristles bundles |
ESD Flat Brush / Thick / Small | 155 | 23 | 30mm |
|
S-02 |
1 row 6 bristles bundles |
ESD Flat Brush / Thick / Medium | 171 | 44 | 40mm |
|
S-03 |
1 row 8 bristles bundles |
ESD Flat Brush / Thick / Large | 168 | 58 | 40mm |
|
S-01-M |
1 row 7 bristles bundles |
ESD Flat Brush / Small | 143 | 39 | 25mm |
|
S-02-M |
1 row 9 bristles bundles |
ESD Flat Brush / Medium | 143 | 48 | 25mm |
|
S-03-M |
1 row 12 bristles bundles |
ESD Flat Brush / Large | 171 | 62 | 25mm |
Applications
Widely used for cleaning printed circuit boards and SMT assemblies.
