No.668, Fengting Avenue, Suzhou Industrial Park, Jiangsu Province, China | Sales01@allesd.com |
Place of Origin: | China |
Brand Name: | allesd |
Certification: | ISO/SGS |
Model Number: | ES0107 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1pcs/clip board, 100pcs/gift box |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T |
Supply Ability: | 50,000pcs per month |
Features: | Dual | Cord Material: | PU |
---|---|---|---|
Cord Length: | 1.8m, 2.4m, Or 3.6m (upon Request) | Cord Dia.: | 2.05mm/2.5mm/3.0mm |
Banana Plug: | Yes | System Resistivity: | 1 Meg Ohm Resistor |
Snap: | 4mm | ||
Highlight: | electrostatic discharge strap,esd anti static wrist strap |

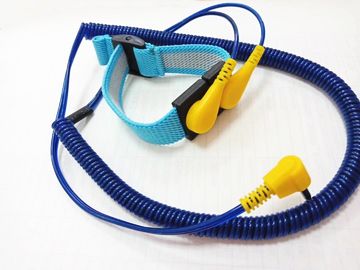

ESD Dual Wire Electrostatic Discharge Band Adjustable PU Cord 4mm Snap
ESD Safe Dual Fabric Wrist Strap Adjustable w/Aligator Clip Model ES0107
Descriptions:
“ It is an antistatic device used to safely ground a person working on very sensitive electronic equipment, to prevent the buildup of static electricity on their body, which can result in electrostatic discharge.
It is used in the electronics industry by workers working on electronic devices which can be damaged by ESD, and also sometimes by people working around explosives, to prevent electric sparks which could set off an explosion.
It consists of an elastic band of fabric with fine conductive fibers woven into it, attached to a wire with a clip on the end to connect it to a ground conductor.
The fibers are made of carbon-filled rubber, and the strap is bound with a stainless steel plate.
They are usually used in conjunction with an antistatic mat on the workbench, the wrist strap is usually worn on the nondominant hand.It is connected to ground through a coiled retractable cable and 1 meg ohm resistor, which allows high-voltage charges to leak through but prevents a shock hazard when working with low-voltage parts ” from Wikipedia
Features:
- If one conductor is damaged, the operator will maintain the path-to-ground through the other conductor; -
- Fits standard dual wire monitors and grounding jacks;
- 360 degree curved wrist band and coil cord, easy for size adjustment;
- The band is standard with dual 4mm snap;
- The 2.05mm/2.5mm/3.0mm polyurethane coil insulation offers excellent coil memory;
- A swivel type banana jack increases coil life and prevents cord tangles;
- The soft woven fabric and curved buckle of the wrist band allows the skin to breathe and makes it very comfortable to wear.
- Meets or exceeds requirements of ANSI ESD standard
More Characteristics
Item | Optional |
Composition of ESD Adjustable Fabric Wristband | Polyester, rubber conductive fiber ( carbon /silver for optional) |
Material of Coil Cord | PU |
Length of Coil Cord | 1.8m, 2.4m, or 3.6m (upon request) |
Diameter of Coil Cord | 2.05mm, 2.5mm, 3.0mm |
Button Snap | 4mm available |
Other Products we Supply
More Photos
A, ESD Fabric Band Dual Snap
B, ESD Metal Band Dual Snap
