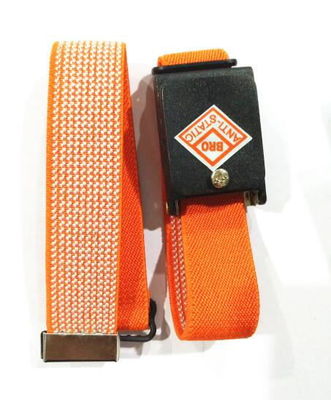

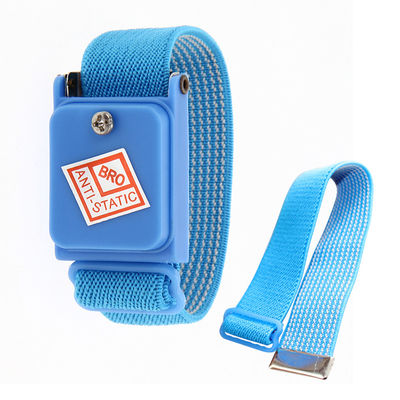

Knitted Elastic Band Blue Orange Maroon Color Cordless ESD Anti-static Wrist Strap
Product Details
esd anti static wrist strap
,esd control wrist strap
Knitted Elastic Band Blue Orange Maroon Color Cordless ESD Anti-static Wrist Strap
ESD Safe Cordless Fabric Wrist Strap Adjustable Model ES0102
Descriptions:
It uses static voltage balance principle, to reach:
1, Adopt Corona discharge effect, effective remove electrostatic, and achieve static voltage balance
2, Can use this screw to do potential return to zero function
3, Can be used as circuit detection terminals.
It consists of an elastic band of fabric with fine conductive fibers woven into it, the fibers are made of carbon-filled rubber, and the strap is bound with a stainless steel plate.
Features:
- 360 degree curved wrist band;
- The band is standard with 4mm or 10mm snap;-
- The soft woven fabric allows the skin to breathe and makes it very comfortable to wear.
IMPORTANT NOTICE
Point A: Screw
Point B: Stainless steel
Point C: Conductive Fabric
| Easy procedure for effectiveness testing | ||
| Test-point pair | Electric Resistance | |
| Good | A-B | 106Ohm < R < 107Ohm |
| A-C | 106Ohm < R < 107Ohm | |
| B-C | 102 Ohm < R < 107Ohm | |
| Bad | A-B | R>107Ohm re-inspect |
| B-C | R>107Ohm replace wrist strap | |
