No.668, Fengting Avenue, Suzhou Industrial Park, Jiangsu Province, China | Sales01@allesd.com |
Place of Origin: | China |
Brand Name: | allesd |
Certification: | ISO/SGS/CTI |
Model Number: | SM0102-ESD |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 8 Mats/case; 10 Mats/case |
Delivery Time: | 15-25days |
Payment Terms: | T/T |
Supply Ability: | ~100,000 mats per month |
Features: | Disposable,Anti-static | Name: | Cleanroom ESD Antistatic Sticky Mat |
---|---|---|---|
Material: | Polyethylene (LDPE) Water-binder (environmental Protection) | Color: | Blue,White |
Thickness: | 28/30/32/35/40/45 Micron | Layer: | 30 Layers |
Popular Sizes: | 24*36 | Application: | Cleanroom/construction Site/home,Industry,Cleanroom |
Highlight: | Peel Off Cleanroom Floor Mats,ESD Antistatic Cleanroom Sticky Mat,Chemistry Lab Cleanroom Sticky Mat |
24*36 30 Layers Peel Off ESD Antistatic Anti-Slip Chemistry Lab Cleanroom Sticky Mats
ESD sticky mats are an effective tool in preventing contaminants and controlling static discharge in sensitive environments. By using these mats at entry points or designated work areas, companies can help maintain clean and static-controlled conditions, protecting sensitive equipment and products from potential damage caused by ESD events.
Spec | Value |
---|---|
Size | 24" X 36" |
Color | Blue, White |
Tackiness | Middle/High |
Thickness | 28/30/32/35/40/45 micron |
Layer | 30 or 60 layers |
Vertical Stretching Strength(N)
|
> 20
|
Lateral Stretching Strength(N)
|
> 12 |
Vertical Fracture Elongation Rate(%)
|
> 200 |
Lateral Fracture Elongation Rate(%)
|
> 300 |
Anti-Aging Performance
|
240 H |
Temperature Stability |
60°C-80°C
|
Package | 4 Mats/case; 8 Mats/case; 10 Mats/case |
Here are some key features and characteristics of an ESD sticky mat:
1.Surface Adhesive: The sticky mat features a top layer with a tacky adhesive surface. This adhesive layer is designed to attract and capture dirt, dust, and other particles from footwear or equipment wheels, preventing them from being tracked into sensitive areas.

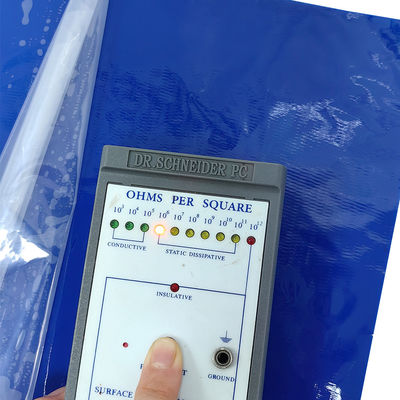

2.ESD Dissipative Properties: The mat is constructed with materials that have inherent ESD dissipative properties. This means that when properly grounded, the mat helps to control and dissipate static charge buildup, reducing the risk of ESD events.
3.Multiple Layer Construction: ESD sticky mats typically consist of multiple layers, including a base layer and a removable top layer with adhesive. The base layer provides stability and prevents the mat from shifting or sliding during use.
4.Numbered Layers: To ensure efficient maintenance, some ESD sticky mats are designed with numbered layers. Each layer can be peeled off and discarded, revealing a fresh layer with adhesive properties. Numbered layers allow for easy tracking of mat usage and replacement.
5.Cleanroom Compatibility: ESD sticky mats are commonly used in cleanroom environments, where maintaining low particle counts and controlling ESD is critical. The mats are manufactured with low-particulate and non-shedding materials to minimize the introduction of contaminants into the cleanroom.
6.Easy Installation and Maintenance: ESD sticky mats are typically easy to install, either by placing them directly on the floor or using a mat frame. They require regular maintenance, including peeling off and replacing soiled layers to maintain their effectiveness.
99% effective*
not hazardous to health
ISO-certified
extra sticky
single-use, maintenance free
optional anti-static treatment
optional box branding
Other photos:
