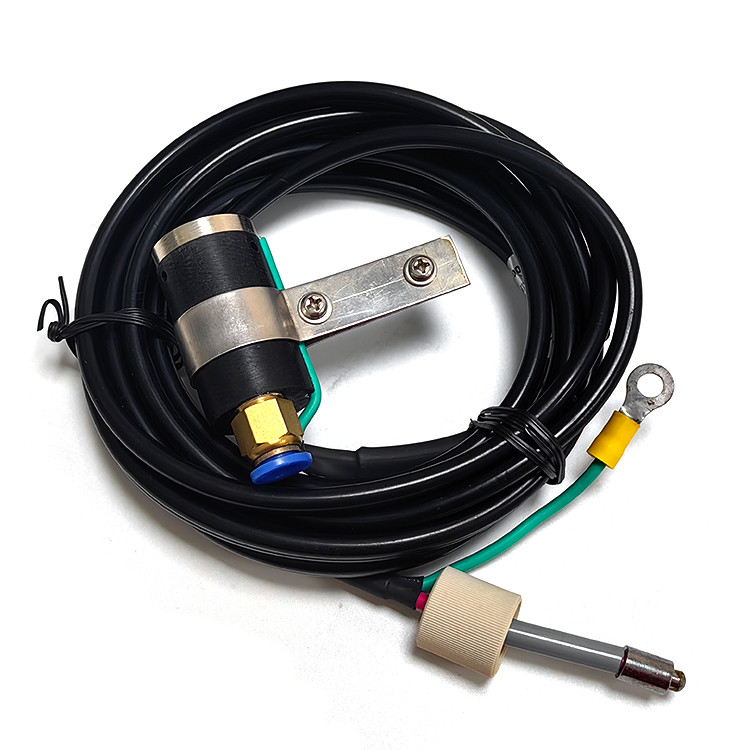

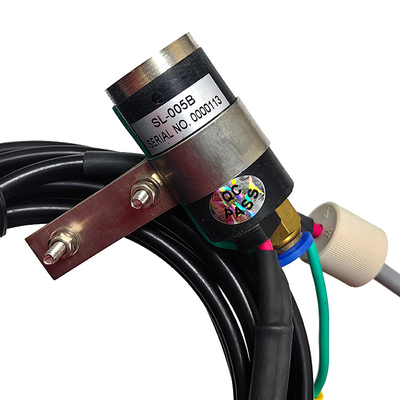

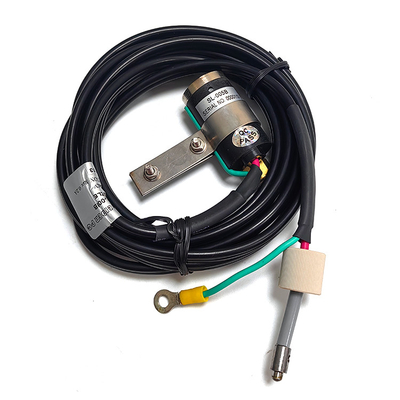

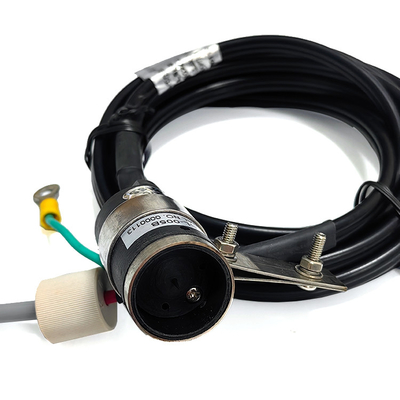

Safety ESD Antistatic Ionizing Air Nozzle For Industry

Safety ESD Antistatic Ionizing Air Nozzle For Industry

  • Safety ESD Antistatic Ionizing Air Nozzle For Industry
  • Safety ESD Antistatic Ionizing Air Nozzle For Industry
  • Safety ESD Antistatic Ionizing Air Nozzle For Industry
  • Safety ESD Antistatic Ionizing Air Nozzle For Industry
Safety ESD Antistatic Ionizing Air Nozzle For Industry
Product Details:
Place of Origin: china
Brand Name: allesd
Model Number: SL-005B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1pc/bag
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: SL-005B Ionizing Air Nozzle Operating Voltage: 5.6kv
Current Consumption: 4.5MA Ozone Generation: 0.03 PPM
Max Air Pressure: 70PSI Min Air Pressure: 40 PSI
Air Velocity: 10 M / Sec Operating Temperature: 32 º F (º C) - 122 º F (50 º C)
Application: Industry
High Light:

Antistatic Ionizing Air Nozzle

,

ESD Materials Ionizing Air Nozzle

,

ESD Anti Static Air Nozzle

Safety ESD Antistatic Ionizing Air Gun/static Ionizing Air Nozzle



Humidity ≤ 60%
Ambient temperature 220C
Working voltage 5.6KV
Current consumption ≤ 350uA
Operating temperature 32 º F (º C) - 122 º F (50 º C)
Compressed air pressure 40-100psi Ozone amount:0.03PPM (measured 6 inches in front of the air nozzle)
Test voltage 5KV~500V
Current Consumption 4.5MA
Ozone Generation 0.03 PPM
Max Air Pressure 70PSI
Min Air Pressure 40 PSI
Air velocity 0.03ppm
Operating Air Velocity 10 m / sec



Product features:


1. Neutralize static electricity quickly
2. Strong ionic air flow
3. The air nozzle has good grounding protection



Working principle:


SL-005B ion nozzle can produce a large amount of air flow with positive and negative charges, which is blown out by compressed air at high speed, and can neutralize the charges on objects. When the charge on the object surface is negative, it will attract the positive charge in the air flow. When the charge on the object surface is positive, it will attract the negative charge in the air flow, so that the static electricity on the object surface will be neutralized to eliminate static electricity. High speed compressed air can also blow away stubborn dust on objects.



Ionization device: under the action of low current and high voltage generated by the high voltage generator, the ionization device forms a stable high strength electric field, ionized air forms an ionizer, which is carried out by the high pressure air flow to the object surface, so as to achieve the purpose of neutralizing static electricity and dedusting.



Installation and operation:


SL-005B ion nozzle shall be equipped with SL-008 high-voltage generator for use together.
Insert the end of the connecting wire of the air nozzle into the high voltage output jack of the high voltage generator, turn it clockwise to the end, and then connect the grounding wire of the air nozzle connecting wire to the grounding wire outside the high voltage generator. After confirming that the grounding is good, insert the plug of the high voltage generator into the socket with the grounding wire (pay attention to the use voltage of the high voltage generator), fix and install the air nozzle at a proper position, connect the compressed air, and turn on the power supply of the high voltage generator to work.


Note: Air filter can be installed if necessary.
