|Place of Origin:||china|
|Model Number:||ESD Grounding Socket|
|Minimum Order Quantity:||Negotiable|
|Delivery Time:||7-10 working days|
|Supply Ability:||100,000pcs per month|
|Product Name:||ESD Anti-static Grounding Socket||Grounding:||Standard Grounding|
|Rated Voltage:||Less Than 12v||Feature:||Anti-static|
ESD Safe Materials Grounding Plug,
1MOhm Resistor ESD Grounding Plug,
EU Type ESD Grounding Plug

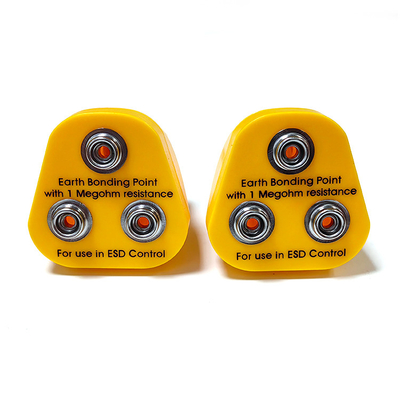

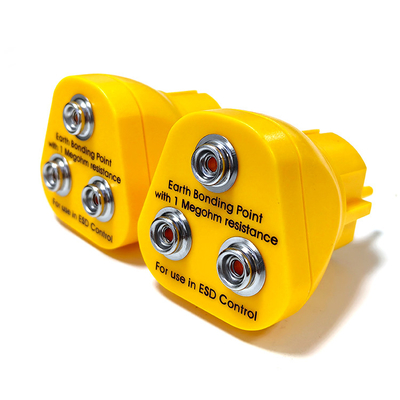

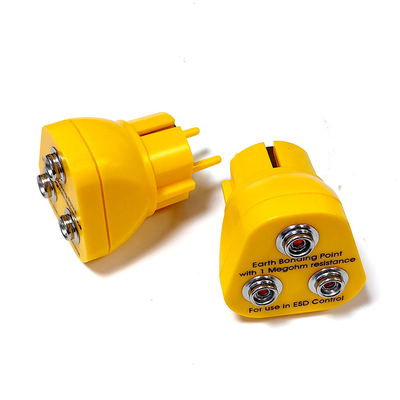

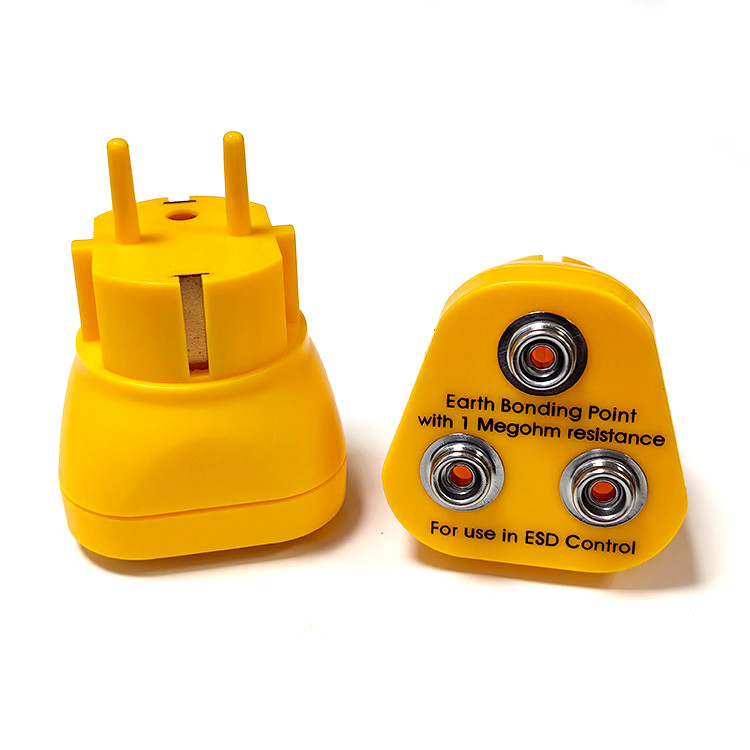

Studs Earth Bonding Plug 1MOhm Resistor EU Plug Type Antistatic Point ESD Grounding Plug
ESD earth bonding plug:
ESD EU plug,ESD earth bonding plug,ESD grounding plug
|Rated Voltage:||Less than 12v|
|Rated Current:||less than 0.3mA|
|Package Type:||1pc /bag;20pcs/bag|
1 .The plug fits directly in to the mains supply socket, connecting with only the earth conductor. Live and Neutral pins have been molded in insulating plastic, fitting into the supply socket but completely dormant.
2. At the front of the plug are connectors linked via 1M Ohm resistors to the earth pin, inside the plug. The connectors offer a link to ground for connecting cords from the EPA.
3. The1M Ohm resistor to each connector offer protection in the event the workstation becomes live. That protection would limit the current to less than 0.3mA at 240 volts. Should the fault current continue the resistor will open circuit.
4. Insert the plug into the supply socket making sure it is fully home, then connect the various elements of the EPA... For example wrist strap cord, bench or floor matting connection cords. This ensures that the EPA is at the same earth potential.
5. As generally the workstation has more than one plug socket it is possible to use more than one EBP if more connections are required.
6. The EBP is sealed and cannot be opened for repair. To test each connection use a multi-meter from the connector to the earth pin. The reading should be between 0.9 and 1.1M Ohms. As each connection point has its own 1M Ohm resistor, the resistance between two connectors should be approximately 2M Ohms.
The plug must only be used for ESD control purposes.
How to use it?
* Extract product from the bag, fix up one end on the mat
* Then fix up the other end on the other mat, or fix up it on the grounding system
Industrial use of product line, CMOS chip, microprocessor, semiconductor, dish drivers, LCD screen product, circuit product line, precision instrument, optics part and so on.
