Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers

Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers

  • Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers
  • Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers
  • Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers
  • Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers
Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers
Product Details:
Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS
Model Number: EM0106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wate-proof package
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 50,000rolls per month
Contact Now
Detailed Product Description
Material:: PVC Top, EPDM In Middle Layer, Rubber Bottom Color:: Yellow & Black Or Full Black
Size:: 600 X 900 X 17mm (other Size Available) Surface Resistivity:: 10e7-10e9 Ohms
Bottom Conductive Layer:: ≤10e6 Ohms Pattern:: Non-slip Design
Feature:: Antistatic, Anti-fatigue Application:: For Workplace
Highlight:

Rubber ESD Anti Fatigue Mats

,

ESD Anti Static Anti Fatigue Mats

,

ESD Anti Fatigue Mats Three Layers

Anti-static PVC Floor Anti-fatigue Mat Rubber Floor Mat ESD Industria Antifatigue Mat



Product Description:



Three layers of ESD anti fatigue mat, static dissipative floor mat, 17mm thick
The top layer is made of anti-static PVC with yellow electrostatic sensitive symbols and warning strips to make the appearance more eye-catching and beautiful
The buffer layer is EPDM foam, and the bottom is conductive rubber, with a three-layer structure, which will make your feet more comfortable.
After water treatment, we used environment-friendly strong adhesive to bond the layers together.



Considering the size of our molding machine and the convenience of packaging and transportation, we recommend the following sizes:



Normal Size(±5mm) Length Range(±5mm) Width Range(±5mm) Thickness Range(±1mm)
600x900mm 400~15000mm 400~1200mm 10-25mm
600x450mm



Features:


1. Permanent anti-static, surface resistance of electrostatic dissipation layer is 108-109 ohms, and surface resistance of conductive layer is 103-105 ohms;
2. The composite layer structure can effectively cushion the foot pressure and relieve fatigue;
3. The surface is provided with anti-static warning signs, which naturally forms an ESD protection zone;
4. Easy to clean the surface, easy to migrate, without affecting the normal working environment;
5. Its anti-skid surface design makes it safer;
6. Acid and alkali resistant solvent;
7. The size can be customized according to requirements.



Applications:



1. Non ESD area (such as multiple workstations or processes);
2. ESD area is an economical and effective anti-static measure;
3. It is suitable for long-term station use (supermarket, gas station, workshop, laboratory, etc.).



Use maintenance:



1. The surface of ground cushion has anti-skid and static electricity dissipation functions, and oil and dust are regularly cleaned
2. Please use a clean cotton cloth dipped in water to wipe. If there is stubborn dirt, please use a clean cloth dipped in alcohol to quickly wipe, and then use a clean cloth to dry
3. The adhesive cannot be cleaned after bonding; Bad environment such as humidity will shorten product life;
4. Placing sharp objects may cause surface scratches.



Picture:

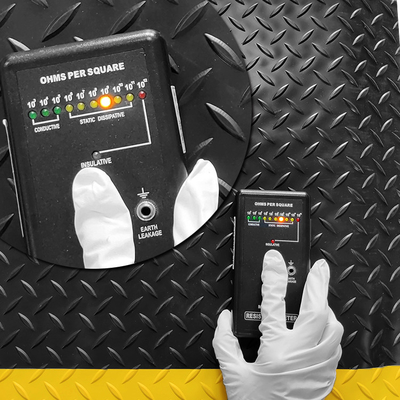

Anti Static PVC Rubber ESD Anti Fatigue Mats Three Layers 0
