|No.668, Fengting Avenue, Suzhou Industrial Park, Jiangsu Province, China||Sales01@allesd.com|
|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||1roll/knitting bags|
|Delivery Time:||15-25 working days|
|Supply Ability:||1,500,000 meters per month|
|Product Name:||4mm Stripe Shiny Surface Waterproof Antistatic Fabric||Material:||99% Polyester+1% Carbon|
|Color:||Blue,black,white,green,yellow,pink,and Etc||Fabric Style:||4mm Stripe,shiny Surface|
|Width (cm):||150||Weight (gr/sqm):||105~110gsm|
|Surface Resistivity:||10e6 ~ 10e9ohms||Yarn Count:||68D*68D|
|Weave Style:||2/1 Twill||Use:||Garment, Industry, Cleanroom, Garment /Suit|
|Functions:||Anti-Static, Waterproof||Recommended Class Of Cleanroom:||Class 100~10000|
Calendering Anti Static Fabric,
4mm Stripe Anti Static Fabric,
Waterproof Calendering ESD Fabric

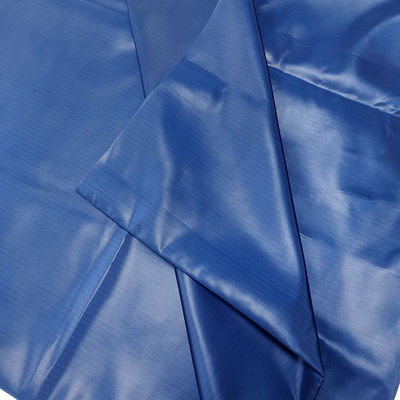

Plain 4mm Stripe Waterproof & Calendering Polyester ESD Anti Static Fabric
Antistatic Fabric Description:
Antistatic fabric is weaved by polyester / cotton filament fiber and high-performance permanent imported conductive fiber. Clean room uniforms made from this kind of fabric through particular sewing process have excellent and lasting performance of antistatic and dust proof.
Uncontrolled discharge from static build-up is a potential hazard for many industries, especially where combustible fuels, gases and dusts are present.
It is also equally hazardous to the safe assembly of sensitive components in clean rooms and the operation and maintenance of electronic equipment and controls.
One of the most serious risks is from the human body, which is capable of generating up to 40,000 volts of static electricity.
|4mm Stripe Shiny Surface Waterproof Antistatic Fabric|
|Color:||Blue, White, Pink, Yellow, Green and etc|
|Use:||ESD protection in clean rooms, work wear|
|Carbon Configuration:||4mm Stripe,shiny surface|
|Surface Resistivity (ohm/unit):||10e8 ~ 10e9|
|Friction charges (V):||<200|
|Number of yarns (denier)||Warp100
|Weave style:||1/2 Twill|
|Air permeability (cc/cm²/sec):||30|
|Recommended Class Of Cleanroom:||Class 1000~10000|
Anti-static Clothing Fabric Use:
For making anti staitc clothing, workwear, and other garment accessories, for example ESD bag, ESD cap, ESD Facemask, ESD Shoe cover and so on to protect sensitive components from harmful static charges.
Cleanroom ESD Fabric Features:
1) Antistatic fabric is also called "conductive silk", and it adopts the special polyester filament and high quality conductive yarns
2) This fabric can be used for sewing kinds of antistatic functional garments, such as coverall, suit, jacket, caps, boots and etc.
3) Excellent conductivity and available in all colors, included sky blue,dark blue, pink, white, yellow, green and grey.
4) Anti-static fabric is designed for Class 1000 cleanrooms and higher.
5) Anti Static fabric has wide applications in electronics, medicals, biology, optics, spaceflight industries etc
6) ESD clothing fabric meets ESD standards, system resistance 106-109ohmsm
7) It is one of the most economic fabrics for static control and dust free solutions.
More picture about ESD Fabric:
Recommended cleaning process for ESD garments:
The carbon filament nylon used in our garments is sensitive to heat, alkali, acids, softeners and bleach. In order to keep the ESD properties of the garments, please follow our recommended instructions:
*Wash in warm water, no more than 40 C(104 F) with liquid laundry detergent, i. e. liquid Tide, lemon liquid detergent, oxydol, and etc.
*In case of severe dirt or grease, stronger liquid detergents can be used if they do not contain any chlorine bleach.
*Do not bleach, do not use alkali, acid or fabric softeners. Do not dry clean.
*Usually no ironing will be needed, as a special additive is used during the finishing process of our woven fabrics. Nevertheless, the garments can be ironed at medium temperature.
