Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric

Basic Properties
Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS
Model Number: AF0060
Trading Properties
Minimum Order Quantity: 150 Meters / Negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1,500,000 meters per month
Product Summary
High Quality 5mm Stripe Pink Blue Yellow Antistatic Polyest Anti-static Clothing Fabric Cleanroom ESD Fabric 5mm Stripe Pink Blue Yellow Antistatic Polyest Fabric Description: Spec Value Anti-static Clothing Fabric Material 99% Polyester 1% Carbon Fiber Available Colors White, Blue, Pink, Yellow, ...

Product Details

Highlight:

Class 1000 Cleanroom ESD Fabric

,

5mm Stripe ESD Fabric

,

lint free electrostatic discharge fabric

Product Name: Cleanroom ESD Fabric
Material: 99% Polyester+1% Conductive Filament
Color: Blue, Pink, Yellow / Customizable Other Colors
Fabric Style: Stripe 5 Mm
Weight: 110g/sqm
Yarn Count: 100d48f*100d48f
Density: 188*120
Weave Style: Twill 1/2
Surface Resistivity: 10e6 ~ 10e8ohms
Package: 1roll/knitting Bags
Functions: Anti-static, Lint Free,Cleanroom ESD Protection
Recommended Class Of Cleanroom: Class 1000~10000
Product Description

High Quality 5mm Stripe Pink Blue Yellow Antistatic Polyest Anti-static Clothing Fabric Cleanroom ESD Fabric



5mm Stripe Pink Blue Yellow Antistatic Polyest Fabric Description:



Spec Value
Anti-static Clothing Fabric Material 99% Polyester 1% Carbon Fiber
Available Colors White, Blue, Pink, Yellow, Green and etc / Customizable other colors
Use ESD protection in clean rooms, work wear
Carbon Configuration Stripe 5mm
Weight (gr/sqm) 110-115 gr/sqm
Surface Resistivity (ohm/unit) 10e8 ~ 10e9
Friction charges (V) <300

Number of yarns (denier)

Warp

Weft

100

100

Weave style Twill 1/2
Air permeability (cc/cm²/sec) 30
Recommended Class Of Cleanroom Class 1000~10000



ESD Clothing Fabric Use:



Industry, Accessories, Coat and Jacket.



Cleanroom ESD Fabric Features:



  1.  It is also called "conductive silk", and it adopts the special polyester filament and high quality conductive yarns
  2.  This fabric can be used for sewing kinds of functional garments, such as coverall, suit, jacket, caps, boots and etc.
  3.  It offers good resistance to static, chemicals and abrasion.
  4.  It is designed for Class 1000 cleanrooms and higher.
  5.  It has wide applications in electronics, medicals, biology, optics, spaceflight industries etc
  6.  It meets ESD standards, system resistance 106-109ohmsm
  7.  It is one of the most economic fabrics for static control and dust free solutions.

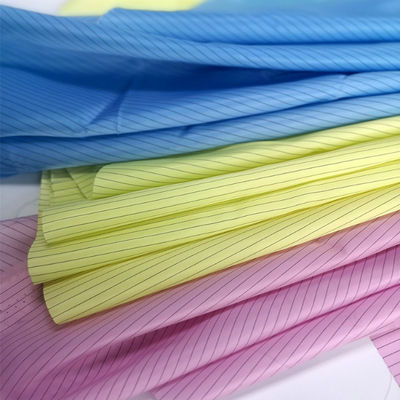

More picture about ESD Fabric:



Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric 0Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric 1Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric 2Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric 3



Other Products we Supply:



* Cleanroom Apparels(Disposable, Launderable)
* Cleanroom Documentation(Paper, Pen, Notebook),
* Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
* Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
* ESD Package Materials(Bags, Tapes etc),
* ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
* Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
* Cleanroom &ESD Chairs/Stools,
* ESD Wrist/Heel Straps/Grounding Cords.
* Static Control Ionizing Blower/Gun/Nozzle,
* Illuminated Magnifier,
* Cleanroom Curtain and etc



FAQ:



● Q1: Are you a manufacturer?
①.Ans:Yes, we have been in manufacturing and providing excellent Cleanroom and ESD solutions for customers more than 10years.
②.Our own production plants and a wide network of suppliers who are strictly selected, are totally qualified for ISO Quality Management System.
● Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand. If customized one, about a week around.
● Q3: How about batch order production?
Ans: Normally 3-7days or so
● Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to ISO standard and ruled by our QC staff.
● Q5: How do you ship the goods?
Ans: By sea, by air, by truck or by courier (UPS, DHL, Fedex, TNT etc.)
● Q6: What advantage do you have?
Ans:
①.We have professional engineers, customers can expect the best possible advice and support.
②.Related responsible team to answer all your questions and follow-up process for you and do update in time
③.Strict and standard process control according to Quality Management System.
④.Documents support on products, we have strong technical data sheet to support our products,

which could make you easier to know our products.
