No.668, Fengting Avenue, Suzhou Industrial Park, Jiangsu Province, China | Sales01@allesd.com |
Place of Origin: | China |
Brand Name: | allesd |
Certification: | ISO/SGS |
Model Number: | AF0636 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | 1roll/knitting bags |
Delivery Time: | 15-25 working days |
Payment Terms: | T/T |
Supply Ability: | 1,500,000 meters per month |
Material: | 98% Cotton 2% Conductive Fiber | Color: | All |
---|---|---|---|
Width (cm): | 165 | Weight (gr/sqm): | 180 |
Surface Resistivity: | 106 ~ 109 | Yarn Count: | 26S/1 |
Type: | 10mm Stripe | ||
Highlight: | anti static material,static dissipative materials,Cotton Knitted ESD Safe Materials |

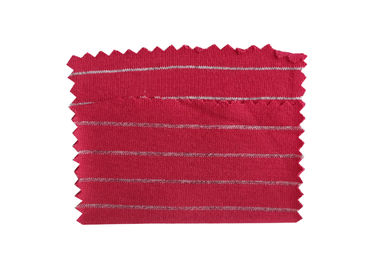

Antistatic Cotton Knitted Fabric ESD Safe Materials 26S/1 Yarn Count ESD T Shirt Fabric
Description: Anti-static ESD Knitted Cotton Fabric, 10mm Stripe
Applications: ESD protection in clean rooms, work wear
Features:
1) It is knitted with 98% cotton and 2% high quality conductive yarns
2) It is ESD safe, with stable system resistance below 109Ω
3) They are mainly used for ESD T-shirt, ESD Polo shirt, it offers excellent sweat aborption, good ventilation and comfortable feeling.
4) Washable, even 100times washing, no obvious decrease on ESD properties
5) Autoclavable, meets ESD standards
Applications
Suitable for Car industry, Food industry, Test & Package, or any other applications where ESD performance is required
Specifications:
Spec | Value | Test Method |
---|---|---|
Material | 98% Cotton 2% Conductive Fiber | |
Available Colors | All | |
Carbon Configuration | Stripe 10mm | |
Width (cm) | 165 | |
Weight (gr/sqm) | 180 | |
Surface Resistivity (ohm/unit) | 106 ~ 109 | |
Friction charges (V) |
<50 |
ESD Woven Fabric also Available if Requested
Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
AF0060 | Strip 5mm | 100D48F*100D48F | 110-115g/m2 | 165*82ends/inch | 1.2uc/m | <300V |
AF0064 | Strip 10mm | 100D48F*100D48F | 110-115g/m2 | 165*82ends/inch | 1.2uc/m | <300V |
AF0080 | Grid 5mm | 100D48F*100D48F | 110-115g/m2 | 165*82ends/inch | 0.8uc/m | <200V |
AF0083 | Grid 2.5mm | 100D48F*100D48F | 115-120g/m2 | 165*89ends/inch | 0.8uc/m |
<150V |
