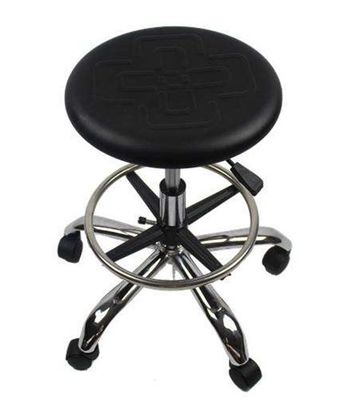

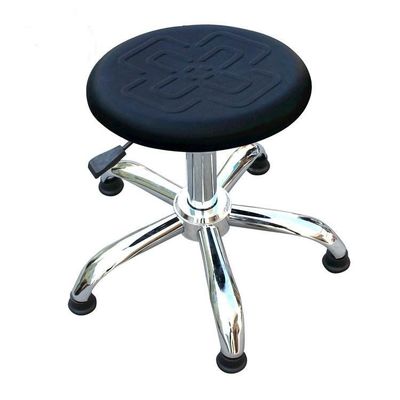

EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable

EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable

  • EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable
  • EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable
EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable
Product Details:
Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS/CTI
Model Number: AC2530
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: mixed package or custom 1 set/box
Payment Terms: T/T
Supply Ability: ~10,000 sets per month
Contact Now
Detailed Product Description
Material: Polyurethane Color: Black
Seat Size: Dia.340 Thickness: 45mm
Height Adjustable: 470-620mm System Resistance: 10e6-108ohms
Highlight:

esd stool

,

anti static stool

EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable



Polyurethane ESD Stool: AC2530
Description: It is made of polyurethane seat, with esd grounding resistivity up to 109ohms.
Features:
1) Conductive metal chain acts as ground.
2) Adjustable height and optional chrome foot ring
3) Cleanroom Class 100-1000 certified.
4) ESD grounding resistivity range from 107 to 109 ohms
5) 5 star chrome conical foot, Radius 260 or 320mm
6) PA nylon glides, optional castors If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge
7) Resists stains, punctures and chemicals.

8) Height adjustable: 470-620mm

9) Warranty: 1Year

10) Pacakge: partially assembled

Technical Spec

Spec Value Test Method
Material Polyurethane
Design Round surface with Chinese-knot Pattern
Seat Size Dia.340mm
Thickness 45mm
Standard Color Black
Back Tilt Not available
Seat Tilt Not available
Gas Lift Yes
Seat Height Adjustment 470-620mm
Base 5-Star Chromed Foot
Footring (Optional) 400mm diameter adjustable chrome footring
Glides/Castors ESD or Non-ESD for options









































Parts List:

  • Seat w/control Mechanism Q'ty 1pcs
  • Chromed Five Star Base Q'ty 1pcs
  • Pnuematic Cylinder Q'ty 1pcs
  • Glides/Casters Q'ty 5pcs
  • Footring (optional) Q'ty 1pcs

Assembly Instructions

  1.  Insert glides or casters into each leg of the base.
  2.  Slide footring (if enclosed) onto cylinder.
  3.  Slide the cylinder into the center of the base.
  4.  Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to  secure fit onto cylinder.

Applications

Widely used in EPA / Clean room environment
