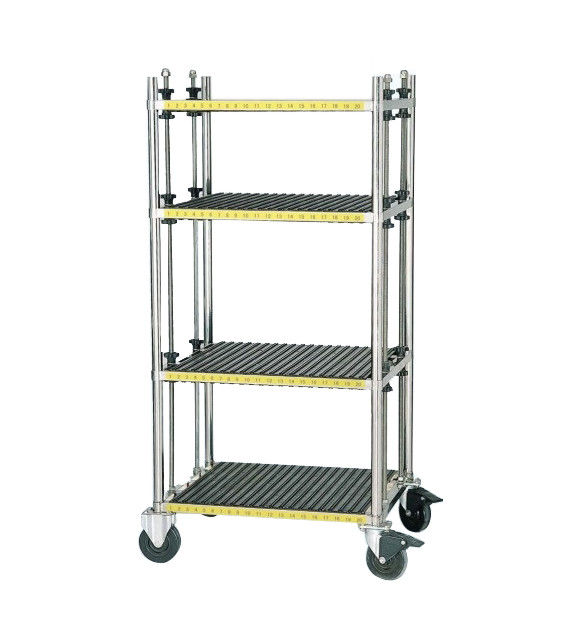

Vertical Hold Panel Rack ESD PCB Cart PPE Conductive Plastic Size 670mm Pitch 30mm

Vertical Hold Panel Rack ESD PCB Cart PPE Conductive Plastic Size 670mm Pitch 30mm

  • Vertical Hold Panel Rack ESD PCB Cart PPE Conductive Plastic Size 670mm Pitch 30mm
Vertical Hold Panel Rack ESD PCB Cart PPE Conductive Plastic Size 670mm Pitch 30mm
Product Details:
Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS
Model Number: CC8818
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: mixed package
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
External Dimensions: L715XW645XH1500MM PCB Boards Loaded: 60pc (20pc Each Column)
Panel Size: 670mm Main Materials: 304# Stainless Steel And PPE Conductive Plastic
Load Capacity: 150KG Types: Vertical Hold
High Light:

pcb storage rack

,

esd pcb racks

Vertical Hold Panel Rack ESD PCB Cart PPE Conductive Plastic Size 670mm Pitch 30mm



Model CC8818

Description:

1, Surface resistance: 104-108 Ohms(80-100℃)

2, External dimension: L715XW645XH1500MM

3, Number of columns available: 3 columns (20 slots each column)

4, Slot board: slot width 4mm, depth 3.5mm, pitch 30mm

6, Panel Width: 670mm

7, Main materials: 304#, 202#, and PPE conductive materials

8, Loading capacity: 150KG

9, Available in any custom size

Features:

1, Cart stackable and the slide panels are adjustable.

2, Holds boards at a workable level for seated assemblers

3, Large capacity, can max store 60pc of Size 670mm PCB boards

4, Easily Transported and Stored, great for transporting "board work” in process

Standard Size Table & Information:



Model

NO.



External dimension



Number of per columns

Slot board

Width

(mm)

Depth

(mm)

Length

(mm)

Pitch

(mm)

CC8888

L960*W660*H1300MM

L850*W560*H1300MM

100 slots

4.5

4.5

460

10

CC8889

L960*W560*H1300MM

L850*W490*H1300MM

100 slots

4.5

4.5

350

10

CC8810 L850*W550*H1450MM 100 slots 4.5 4.5 460 10
CC8811 L850*W450*H1450MM 100 slots 4.5 4.5 350 10
CC8812 L850*W660*H1300MM 100 slots 4.5 4.5 530 10
CC8816 L850*W1350*H1300MM 100 slots 4.5 4.5 1260 10
CC8817 L530*W530*H1450MM 50 slots 4.5 4.5 460 10
CC8818 L715*W645*H1500MM 20 slots 4 3.5 670 30
CC8819 L850*W660*H1300MM 55 slots 5 3 520 19

Other Products we Supply

  • ESD Fabric
  • Cleanroom Apparels
  • Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
  • Cleanroom &ESD Chairs/Stools,
  • Cleanroom Documentation(Paper, Pen, Notebook),
  • Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
  • Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
  • ESD Package Materials(Bags, Tapes etc),
  • ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
  • ESD Wrist/Heel Straps/Grounding Cords.
  • Static Control Ionizing Blower/Gun/Nozzle,
  • Illuminated Magnifier,
  • Cleanroom Curtain and etc
