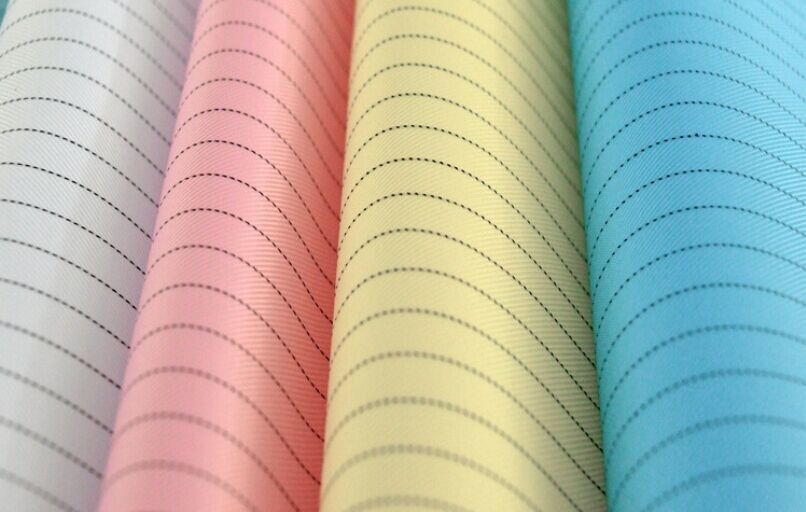

5mm Stripe Polyester ESD Fabric Antistatic 2 / 3 Twill 75D X 75D
Basic Properties
Place of Origin:
China
Brand Name:
allesd
Certification:
ISO/SGS
Model Number:
AF0063
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
1,000,000 meters per month
Product Summary
5mm Stripe Polyester ESD Fabric Antistatic 2 / 3 Twill 75D X 75D ESD 2/3 Twill Polyester Fabric 5mm Stripe: AF0063 Description: Anti-static ESD 2/3 Twill Polyester Fabric,5mm Stripe Applications: ESD protection in clean rooms, work wear Features: 1) This kind of garments/cap/boots/facemask which are ...
Product Details
Highlight:
electrostatic discharge fabric
,static dissipative fabric
,5mm Polyester ESD Fabric
Material:
99% Polyester 1% Carbon Fiber
Color:
All Colors
Width (Cm):
150
Weight (Gr/Sqm):
110g/sm
Weave Style:
Woven
Surface Resistivity:
106 ~ 108
Product Description
5mm Stripe Polyester ESD Fabric Antistatic 2 / 3 Twill 75D X 75D
ESD 2/3 Twill Polyester Fabric 5mm Stripe: AF0063
Description: Anti-static ESD 2/3 Twill Polyester Fabric,5mm Stripe
Applications: ESD protection in clean rooms, work wear
Features:
1) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer extremely good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in medicals, biology.
2) Meets ESD standards, system resistance 106-107ohms
3) Autoclavable at 121 degrees if adopts special low-shrinkage conductive fiber
Specifications:
| Spec | Value | Test Method |
|---|---|---|
| Material | 99% Polyester 1% Carbon Fiber | |
| Available Colors | All colors | |
| Carbon Configuration | 5mm Stripe | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 110gsm | |
| Surface Resistivity (ohm/unit) | 106 ~ 108 | |
|
Friction charges (V) |
<150 |
|
|
Number of yarns (denier) Warp Weft |
75DFDY*75DFDY |
|
| Weave style | Woven | |
| Recommended Class Of Cleanroom | Class 100~1000 |
Our ESD Woven Fabric 75D series
| Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
| AF0061 | Strip 5mm | 75D36F*75D36F | 90-95g/m2 | 160*88ends/inch | 1.2uc/m | <300V |
| AF0062 | Strip 5mm | 75D36F*100D36F | 110-115g/m2 | 188*90ends/inch | 1.2uc/m | <300V |
| AF0063 | Strip 5mm | 75D36F*75D36F | 105-110g/m2 | 188*120ends/inch | 1.0uc/m | <200V |
| AF0081 | Grid 5mm | 75D36F*75D36F | 90g-95g/m2 | 160*88ends/inch | 1.0uc/m | <200V |
| AF0082 | Grid 5mm | 75D36F*75D36F | 105-110g/m2 | 188*120ends/inch | 0.8uc/m | <150V |
