Dust Free ESD Fabric 5mm Stripe 100D X 100D Woven Twill For Workwear ESD Cap
Product Details
anti static fabric
,electrostatic discharge fabric
,ESD Fabric 5mm Stripe

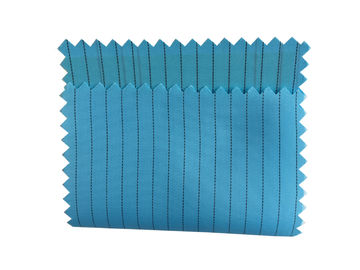

Dust Free ESD Fabric 5mm Stripe 100D X 100D Woven Twill For Workwear ESD Cap
Dust Free ESD Fabric 5mm Stripe: AF0060
Description
Anti-static ESD Woven Polyester Fabric, 5mm Stripe
Applications: For making antistaitc clothing, workwear, and other garment accessories, such as ESD bag, ESD cap, ESD Facemask, ESD Shoe cover and so on to protect sensitive components from harmful static charges.
Features:
1) It is also called"conductive silk", it adopts the special polyester filament and high quality conductive yarns, to meet ESD standards, and system resistance range 108-1011ohms
2) Excellent conductivity and available in all colors, included sky blue,dark blue, pink, white, yellow, green and grey. It is recommended for pharmaceutical industry, medical device, food processing and general assembly cleanrooms.
3) More details as below
| Spec | Value | Test Method |
|---|---|---|
| Material | 99% Polyester 1% Carbon Fiber | |
| Available Colors | All | |
| Carbon Configuration | Stripe 5mm | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 115~120 | |
| Surface Resistivity (ohm/unit) | 108 ~ 109 | |
|
Friction charges (V) |
<300 |
|
|
Number of yarns (denier) |
|
|
| Weave style | Twill 1/2 | |
| Air permeability (cc/cm²/sec) | 30 | |
| Recommended Class Of Cleanroom | Class 1000~10000 |
Our ESD Woven Fabric 100D Series
|
Model |
Spec |
Yarn Count |
Weight |
Density |
Charge Density |
Friction Voltage |
|
AF0060 |
Strip 5mm |
100D48F*100D48F |
110-115g/m2 |
165*82ends/inch |
1.2uc/m |
<300V |
|
AF0064 |
Strip 10mm |
100D48F*100D48F |
110-115g/m2 |
165*82ends/inch |
1.2uc/m |
<300V |
|
AF0080 |
Grid 5mm |
100D48F*100D48F |
110-115g/m2 |
165*82ends/inch |
0.8uc/m |
<200V |
|
AF0083 |
Grid 2.5mm |
100D48F*100D48F |
115-120g/m2 |
165*89ends/inch |
0.8uc/m |
<150V |
