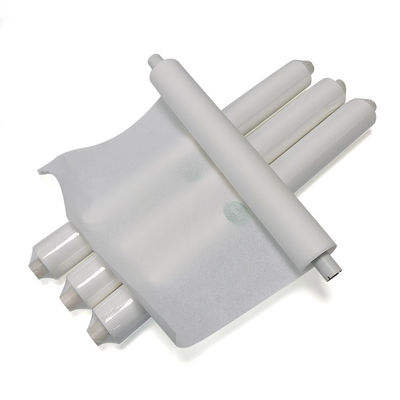

55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll

55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll

  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
  • 55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll
Product Details:
Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS/ROHS
Model Number: CW-0102
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Thermoplastic Sealed Package for Each Roll
Delivery Time: 15-25days
Payment Terms: T/T
Supply Ability: ~100,000 rolls per month
Contact Now
Detailed Product Description
Material: 55% Wood Pulp And 45% Polyester Core Width: Upon Request
Basic Weight: 68gsm Package: 1roll/package(thermoplastic Seal)
Core Diameter: Upon Request Core Material: Plastic Core Or Card Paper Core
High Light:

cleanroom wipes

,

lint free polyester wipes

SMT / PCB Industry Cleanroom Wiper Rolls Non Woven Stencil Weight 68GSM

Description:
Stencil Wiping Rolls are used to remove residual solder paste from the bottom side of PC Board stencils.

It is made by the 55% wood pulp and 45% polyester, or 100% polypropylene, or viscose & polyester. 3 kinds of wiper material for options.

The basic weight of wiper could be: 50gsm, 56gsm, 60gsm, 68gsm etc for choosing.

Core materials: Card Paper Core/ Plastic core for options.

We manufacture stencil rolls in a wide range of sizes to fit popular printer models including; DEK machines, MPM machines, EKRA machines, Panasonic machines, Yamaha machines and so on.
Features:
1. Specifically designed for SMT screen printers
2. Solvent resistant, highly water and oil absorbent, and efficient removal of stains, degreasing
3. High strength, tough and durable, even when wet

4. Soft and make no any scratches and damage the surface of the object.
5. Exceptionally low lint levels, and without any chemical adhesive
Technical Data:

Spec Value Test Method
Size  Chart as below
Material 55% Wood Pulp and 45% Polyester
Basis weight 68g/m2 Electronic Balance Test

RoHS Compliant:

Ion Average Value Equipment Limit Test Value Test Mehod
Chloride(Cl- ) 0.13 0.0010 µg/cm2 test by ion chromatography(IC)
Sulfate(SO4 2-) 0.215 0.0010 µg/cm2 test by ion chromatography(IC)
Sodium(Na+ ) 0.554 0.0010 µg/cm2 test by ion chromatography(IC)
Ammonium(NH4+) 0.0734 0.0010 µg/cm2 test by ion chromatography(IC)
Silicone/DOP N.D. 0.0010 µg/cm2 test by ion chromatography(IC)

For Examples:

Machines Core Inside Dia.(mm) Core Length(mm) Cloth Width(mm) Cloth Length(m)
DEK Ø19.5 530 520 10
MPM Ø19 455 445 10
PANASERT Ø38 360 360 12
MINAMI Ø8 290 270 5
KME Ø38 480 480 15
EKRA Ø13.5 300 300 8

Always we customize sizes upon request, pls let us know more specific parameters if possible.

55% Woodpulp +45% Polyester Non-Woven SMT Stencil Cleanroom Wiper Roll 0

Application:
High standard surface cleaning in processing industry, like the cleanout of PCB board, SMT stencil or silk screen.
SMT line, semiconductor production, optical products, PCB production, automotive, mobile phone production, medical equipment and etc.
