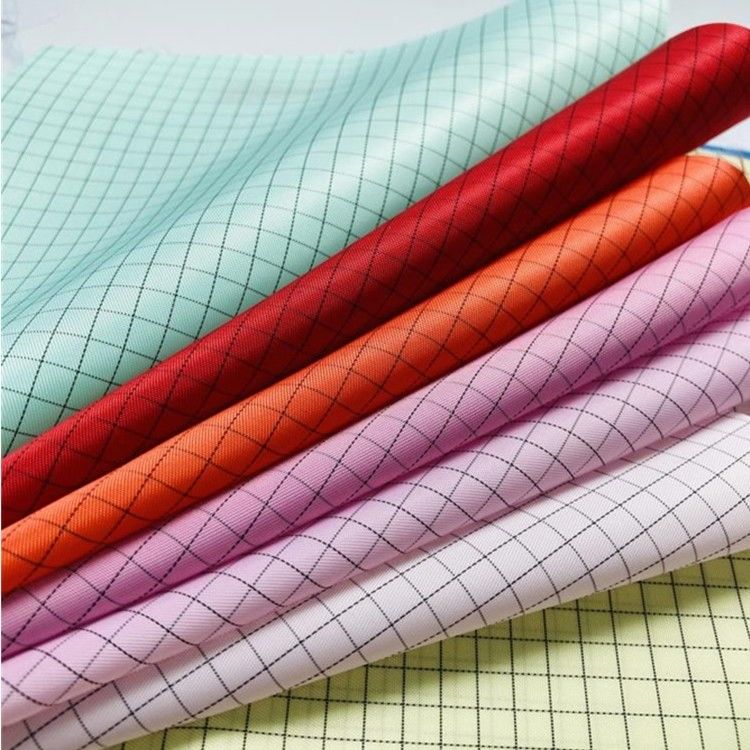

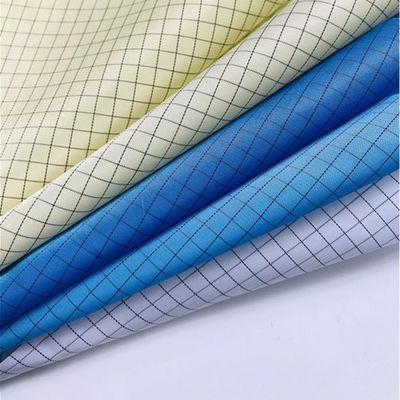

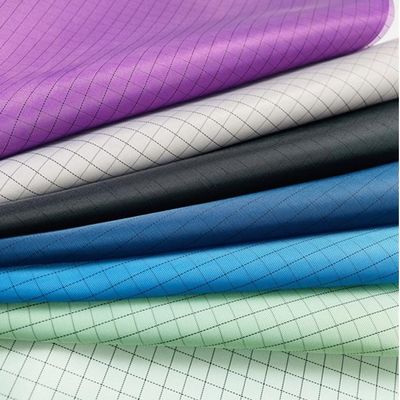

Polyester Anti Static Fabric
Basic Properties
Place of Origin:
China
Brand Name:
allesd
Certification:
ISO/SGS
Model Number:
AF0080
Trading Properties
Minimum Order Quantity:
Negotiable
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
1,500,000 meters per month
Product Summary
10e6ohm Antiestatica Cleanroom Conductive Lint Free Polyester ESD Safe Anti-static Fabric for Lab Coat ESD Fabric 5mm Grid(Checked): AF0080 Description: Anti-static ESD Woven Polyester Fabric, 5mm Grid Applications: ESD protection in clean rooms, work wear Features: 1) It is also called"conductive ...
Product Details
Highlight:
Twill Woven Polyester ESD Fabric
,5mm Grid ESD Fabric
,108ohms ESD Fabric
Material:
98% Polyester 2% Carbon Fiber
Color:
All
Width (Cm):
150
Weight (Gr/Sqm):
115
Weave Style:
Twill 1/2
Surface Resistivity:
106 ~ 108ohms
Package:
1roll/knitting Bags
Functions:
Anti-static, Lint Free
Product Description
10e6ohm Antiestatica Cleanroom Conductive Lint Free Polyester ESD Safe Anti-static Fabric for Lab Coat
ESD Fabric 5mm Grid(Checked): AF0080
Description: Anti-static ESD Woven Polyester Fabric, 5mm Grid
Applications: ESD protection in clean rooms, work wear
Features:
1) It is also called"conductive silk", and it adopts the special polyester filament and high quality conductive yarns
2) It is used for sewing ESD functional garments, which offers good resistance to static, chemicals and abrasion.
3) It is designed for Class 1000 cleanrooms and higher.
4) And it is applicable in electronics, medicals, biology, optics, spaceflight industries etc
5) Meets ESD standards EN 1149-1:2006, surface esistance below 107ohms
Specifications:
| Spec | Value | Test Method |
|---|---|---|
| Material | 98% Polyester 2% Carbon Fiber | |
| Available Colors | All | |
| Carbon Configuration | Grid 5mm | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 115~120 | |
| Surface Resistivity (ohm/unit) | 106 ~ 109 | |
| Friction charges (V) | <150 | |
|
Number of yarns (denier) Warp Weft |
100 100 |
|
| Weave style | Twill 1/2 | |
| Air permeability (cc/cm²/sec) | 30 | |
| Recommended Class Of Cleanroom | Class 1000~10000 |
