Cleanroom TCP IP Network Based Door Interlock System

Cleanroom TCP/IP Network Based Support Card Reader Face Recognition Door Access Control System

Doors Interlock System parameter:

Open System:

Normally open interlock workflow:
1, When the door is not open, system standby, door status lights are green. This time without the key, the door can be pushed arbitrarily enter. Reduce exposure to pollution, easy access with the matter;
2, Pushed open a door, the other door interlock relationship immediately locked, while the light turns red, indicating that the door can not enter;
3, After the door is closed again, the system enters the disabled (buffer) time, all the door locks are closed, the door is back in standby mode after the specified disable time. Buffer time can be adjusted in 0---65535 seconds;
4, In the disabled (buffer) time, such as to open the door, press the emergency button to lock the system after the reset, enter the standby state. The lock is not powered, and the overall service life is extended.

Close System:

Normally close interlock workflow:
1, When the door is not open, system standby, door status lights are green.It permits the key to open the door under the green state. After opening the other door by default logic control;
2, Pushed open a door, the other door interlocking relationship indicator turns red, indicating that the door can not enter, key invalid;
3, After the door is closed again, the system enters the disabled (buffer) time, all the door locks are closed, the door is back in standby mode after the specified disable time. Buffer
time can be adjusted in 0---65535 seconds;
4, Within disable (buffer) time as you want to open the door, press the emergency button system reset, enters the standby state.

Doors Interlock System Component:

1 door interlock system include:

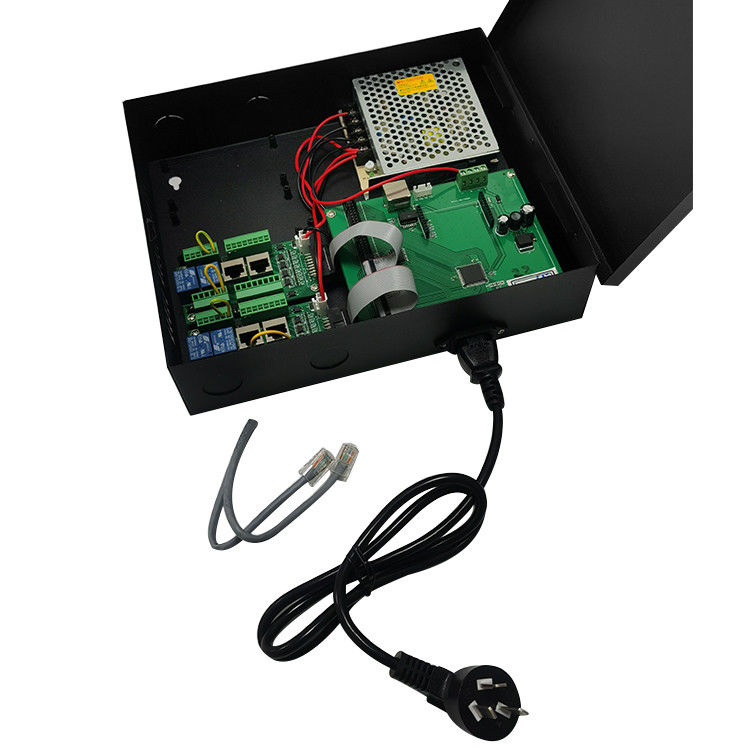

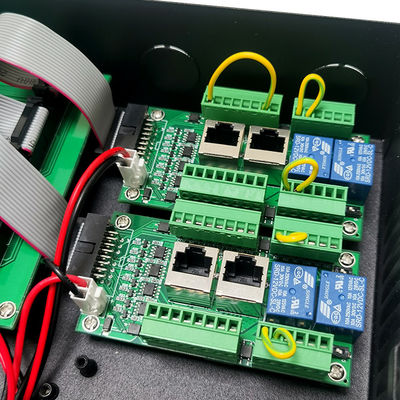

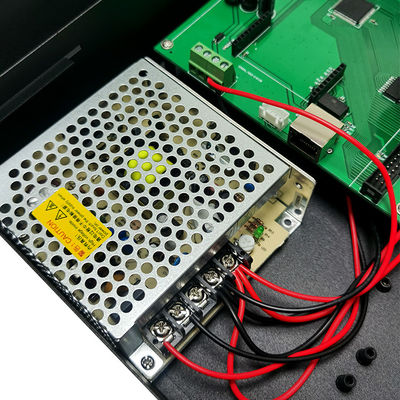

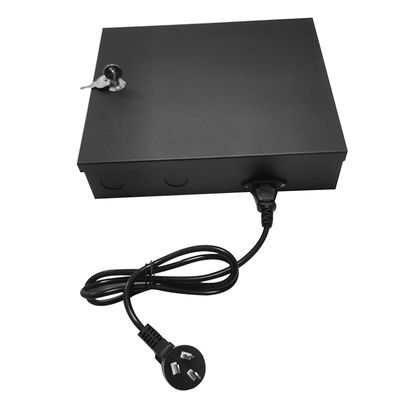

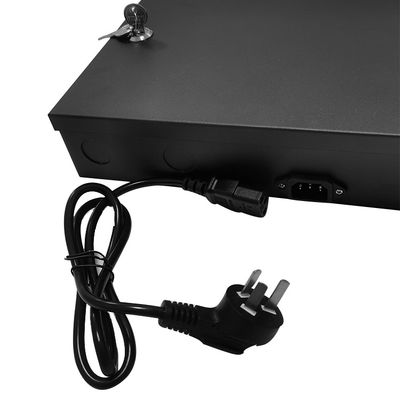

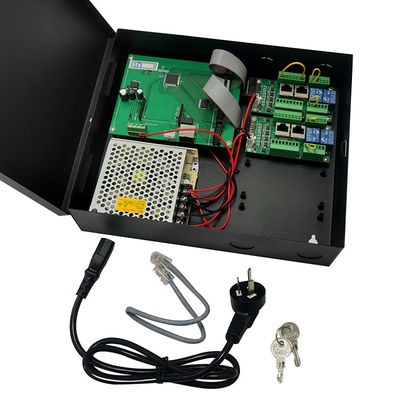

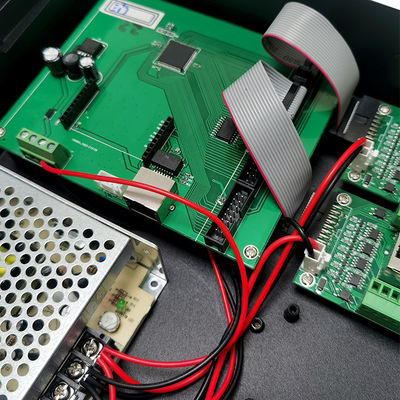

(1), Controller & Power supply
(2), Electric Lock:
(3), Door Magnetic
(4), Door touch switch/indicator
Interlock system for 2 doors.

(Include 1pcs controller + 2pcs Electric Lock + 2pcs Door Magnetic + 4pcs Touch LED switch ).
Interlock system for 3 doors.

(Include 1pcs controller + 3pcs Electric Lock + 3pcs Door Magnetic + 6pcs Touch LED switch ).
