3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat

China Suzhou Quanjuda Purification Technology Co., LTD certification
China Suzhou Quanjuda Purification Technology Co., LTD certification
Fast Service, Good Communication, Great Product.

—— Alan McLevy

Nice product used on our clinic door entrance, we like it.

—— David Bichiashvili

I'm Online Chat Now

3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat

3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat
3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat 3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat 3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat 3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat

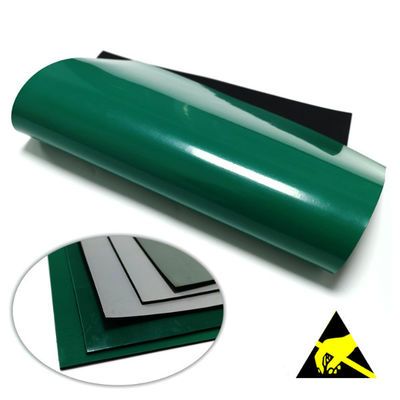

Large Image :  3mm Thickness Vinyl Cleanroom Anti Static ESD Rubber Mat

Product Details:

Place of Origin: China
Brand Name: allesd
Certification: ISO/SGS
Model Number: EM0101

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1roll/box, export pallet
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 50,000rolls per month
Detailed Product Description
Material: Vinyl Size: 1.0m/1.2mx*10mx*2mm(T)
Color: Green Blue Grey Black Surface Resistivity: 108-109 Ohms
Bottom Conductive Layer: ≤106 Ohms Temp Resistance: 60-70degree
Thickness: 2mm/3mm Or Customized Package: 1roll/box
High Light:

Anti Static ESD Rubber Mat

,

Cleanroom ESD Rubber Mat

,

3mm ESD Rubber Mat

Superior Quality Shiny Surface Industry Rubber Cleanroom Anti Static ESD Matting



Product Description



Construction Material:   Rubber
Color:   Green, blue, gray, black
Normal Size:   0.6,0.9,1.0,1.2M*10m*2mm or Custom
Two layers:   Static Dissipation layer + Conductive layer
Surface:   Shiny or dull
Gross Weight:   around 35kg/roll
Remarks:   Above sizes are standard, customized size available.



Features:



1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor

2, Two layers contruction proportion 1:1

Top Static Dissipation Layer (Color: Green/Blue/Grey options)

Bottom Conductive Layer (Color: Black)

3, Some of the Characteristics are as follows:



Dissipative Table Mat/Floor Mat Specification Color
Static Dissipation layer Surface resistance 108-109 1.2mx*10mx*2mm(T)

1.0mx*10mx*2mm(T)
Blue, Grey, Green
Friction static potential V <100
Conductive layer (black bottom) Surface resistance ≤106
Friction static potential V <60
Static voltage attenuation period 5000 – 500V <1.9s
Flame retardation GB4609-84, FV-0 (less than 10S)
Volume resistance 107-1010Ωcm



Physical performance index of Dissipative Table/Floor Mat
No. Description Test reference Results
1 Tensile strength GB 1040 3.6Mpa
2 Fracture elongation GB 1040 188%
3 Tear elongation GB/T 529 20.6KN/m
4 Rebound elasticity (the specimen is laminated with 6 layers of sheets) GB/T 1681 14%
5 Impact embrittlement temperature (no cut) GB 5470 No damage
at -25℃
6 Permanent compression change rate, 70℃*22h, compression 25% GB 10654 17.90%
7





Hot air ageing

Tensile strength change rate





GB/T 7141

8.00%
Fracture elongation change rate -3.80%
Weight loss on heating 1.08%
Remarks

Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141.



Other Products we Supply:



···Cleanroom Apparels(Disposable, Launderable)
···Cleanroom Documentation(Paper, Pen, Notebook),
···Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
···Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
···ESD Package Materials(Bags, Tapes etc),
···ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
···Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
···Cleanroom &ESD Chairs/Stools,
···ESD Wrist/Heel Straps/Grounding Cords.
···Static Control Ionizing Blower/Gun/Nozzle,
···Illuminated Magnifier,
···Cleanroom Curtain and etc



About Us



Established in 2011, Suzhou Quanjuda Purification Technology Co., LTD is a leading manufacturer and exporter of various ESD & Cleanroom products, offers a full line of ESD & Cleanroom equipment and supplies, providing comprehensive services by manufacturing, sourcing and exporting products from China.
