    Product Details:

    Place of Origin: China
    Brand Name: allesd
    Certification: ISO/SGS
    Model Number: EM0102

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: 1roll/box, export pallet
    Delivery Time: 7-10 working days
    Payment Terms: T/T
    Supply Ability: 50,000rolls per month
    Contact Now
    Detailed Product Description
    Material: Rubber Color: Green, Blue, Grey, Black
    Size: 1.0m/1.2mx*10mx*2mm (other Thickness Can Custom) Surface Resistivity: 108-109 Ohms
    Bottom Conductive Layer: ≤106 Ohms Package: 1roll/box
    High Light:

    anti static material

    ,

    static dissipative materials

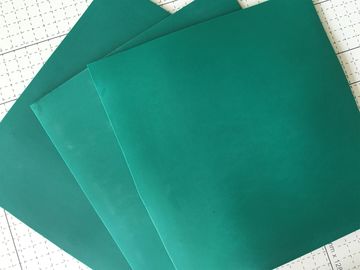

    Workplace Table Static Dissipative Floor Mats Anti Static Rubber Mat Esd Mat

    Descriptions:

    ESD Rubber Mats are made of two layers with the top one as a static dissipative rubber layer, laminated to a black conductive bottom layer.

    Surface resistivity of the top layer is 108 – 109 ohms and bottom layer is 105 – 106 ohms.

    It offers excellent resistance to oil, grease and solvent.

    Its temperature resistance to 160 degree, could be resistant to hot solder, while ESD vinyl mats are suitable for general electronics assembly whose temp resistance reach to 70degree around.

    Normal size(roll): 1.0mx*10mx*2mm(T); 1.2mx*10mx*2mm(T)

    Features:

    1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor

    2, It is available in rolls or ESD work surface mat kits which include a ground snap and common point ground. We can cut mats to special sizes, so please contact us if you have special size requirements.

    3, Many colors for options, custom colors accepted. If you have a quantity no less than 300 square meters, just let us know the Pantone color, we will customize for you.

    4, Some of the Characteristics are as follows:

    Dissipative Table Mat/Floor Mat Specification Color
    Static Dissipation layer Surface resistance 106-109 1.2mx*10mx*2mm(T)

    1.0mx*10mx*2mm(T)
    Blue, Grey, Green, Black
    Friction static potential V <100
    Conductive layer (black bottom) Surface resistance ≤105
    Friction static potential V <60
    Static voltage attenuation period 5000 – 500V <1s
    Flame retardation GB4609-84, FV-0 (less than 10S)
    Volume resistance 105-108Ωcm



    Physical performance index of Dissipative Table/Floor Mat
    No. Description Test reference Results
    1 Tensile strength GB 1040 3.6Mpa
    2 Fracture elongation GB 1040 188%
    3 Tear elongation GB/T 529 20.6KN/m
    4 Rebound elasticity (the specimen is laminated with 6 layers of sheets) GB/T 1681 14%
    5 Impact embrittlement temperature (no cut) GB 5470 No damage
    at -25℃
    6 Permanent compression change rate, 70oC*22h, compression 25% GB 10654

    17.90%

    7





    Hot air ageing

    Tensile strength change rate





    GB/T 7141

    8.00%
    Fracture elongation change rate -3.80%
    Weight loss on heating 1.08%
    Remarks

    Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141.

    About Temp Resistance

    Item Permanent /degree Flash /degree
    ESD Rubber Mat 160 300
    ESD Vinyl Mat 70 120

    Other Products we Supply

    • ESD Fabric
    • Cleanroom Apparels
    • Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
    • Cleanroom &ESD Chairs/Stools,
    • Cleanroom Documentation(Paper, Pen, Notebook),
    • Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
    • Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
    • ESD Package Materials(Bags, Tapes etc),
    • ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
    • ESD Wrist/Heel Straps/Grounding Cords.
    • Static Control Ionizing Blower/Gun/Nozzle,
    • Illuminated Magnifier,
    • Cleanroom Curtain and etc

    Our ESD Rubber Mat Kits

    Workplace Table Static Dissipative Floor Mats Anti Static Rubber Mat Esd MatWorkplace Table Static Dissipative Floor Mats Anti Static Rubber Mat Esd Mat
